SKU: RNA4909LL/3AS-NTN

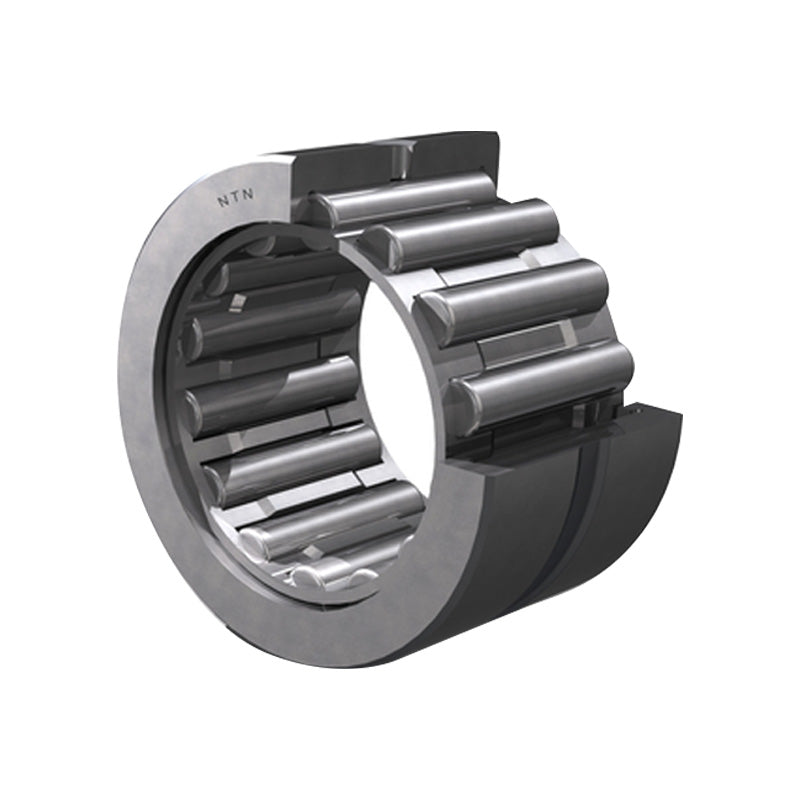

NTN RNA4909LL/3AS Machined Needle Roller Bearing no Shaft Sleeve 52x68x22mm - Allow 2-3 Days

NTN RNA4909LL/3AS Machined Needle Roller Bearing no Shaft Sleeve 52x68x22mm - Allow 2-3 Days
Regular price €36,24 ex VAT
Regular price Sale price €36,24 ex VAT
Sale Sold out

In stock

Price Break
3+ €30,70
4+ €29,46
9+ €28,84
19+ €27,91
49+ €27,29
99+ €25,74
499+ €21,71
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 52mm
D - Outside diameter 68mm
C - Width of bearing, drawn cup or outer ring 22mm
rs - Minimum fillet radius 0.6mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 28.6 kN
C0r - Static load rating 57 kN
N - Grease lubrication limit speed 3800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
Da max - Outer ring maximum shoulder diameter 55mm
Db max - Outer ring maximum smooth shaft shoulder diameter 64mm
ras max - Maximum shaft & housing fillet radius 0.6mm
