SKU: RNA4918R-NTN

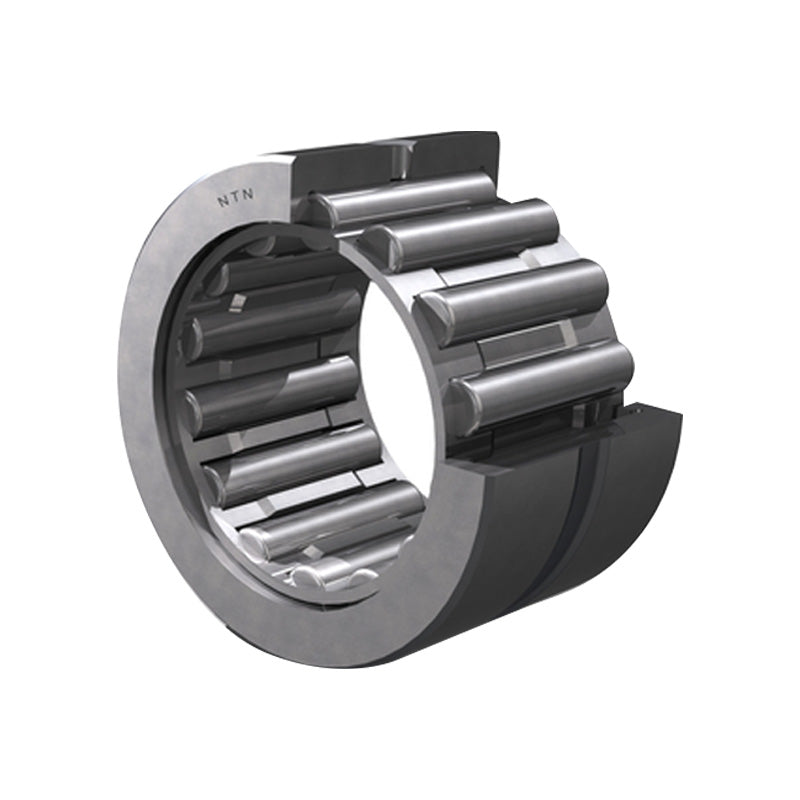

NTN RNA4918R Machined Needle Roller Bearing no Shaft Sleeve 105x125x35mm - Allow 2-3 Days

NTN RNA4918R Machined Needle Roller Bearing no Shaft Sleeve 105x125x35mm - Allow 2-3 Days
Regular price €116,54 ex VAT
Regular price Sale price €116,54 ex VAT
Sale Sold out

In stock

Price Break
3+ €98,73
4+ €94,74
9+ €92,75
19+ €89,76
49+ €87,76
99+ €82,78
499+ €69,81
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 105mm
D - Outside diameter 125mm
C - Width of bearing, drawn cup or outer ring 35mm
rs - Minimum fillet radius 1.1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 116 kN
C0r - Static load rating 252 kN
N - Grease lubrication limit speed 2500 tr/min
N - Oil lubrication limit speed 3800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 118.5mm
ras max - Maximum shaft & housing fillet radius 1mm
