SKU: RNA4919R-NTN

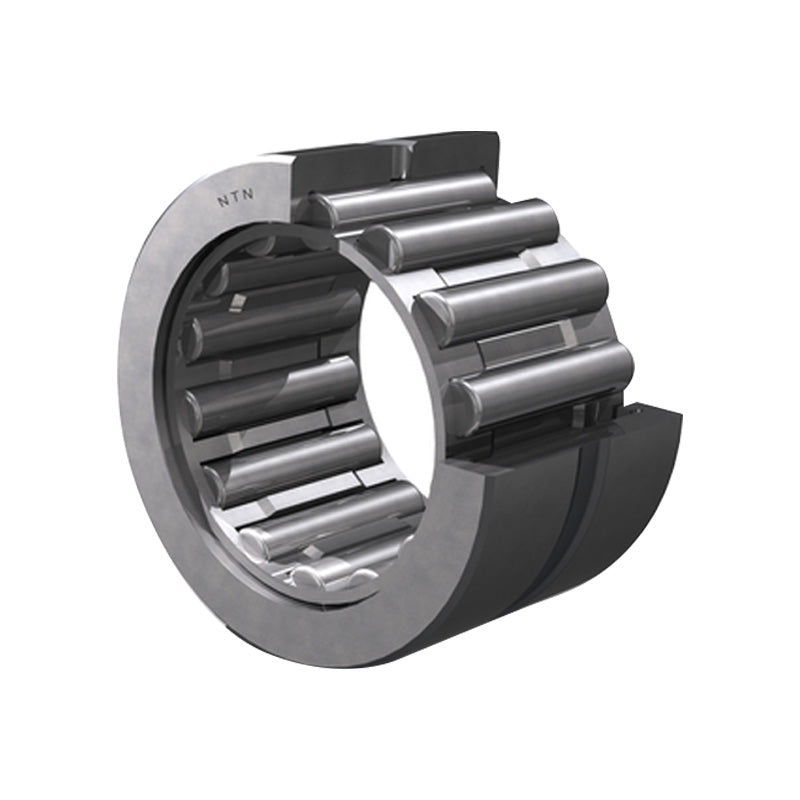

NTN RNA4919R Machined Needle Roller Bearing no Shaft Sleeve 110x130x35mm

NTN RNA4919R Machined Needle Roller Bearing no Shaft Sleeve 110x130x35mm
Regular price €93,91 ex VAT
Regular price Sale price €93,91 ex VAT
Sale Sold out

In stock

Price Break
3+ €71,52
4+ €67,50
9+ €66,70
19+ €65,90
49+ €65,09
99+ €64,29
499+ €60,27
999+ €59,47
1999+ €58,66
2999+ €57,86
4999+ €56,25
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 110mm
D - Outside diameter 130mm
C - Width of bearing, drawn cup or outer ring 35mm
rs - Minimum fillet radius 1.1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 118 kN
C0r - Static load rating 260 kN
N - Grease lubrication limit speed 2400 tr/min
N - Oil lubrication limit speed 3600 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 123.5mm
ras max - Maximum shaft & housing fillet radius 1mm
