SKU: RNA4928-EU
RNA4928 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 160x190x50mm
RNA4928 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 160x190x50mm
Regular price
€259,28
ex VAT
Regular price
Sale price
€259,28
ex VAT
In stock
Price Break
10+
€230,76
19+
€217,80
29+
€215,20
39+
€212,61
49+
€210,02
74+
€207,42
99+
€194,46
199+
€191,87
249+
€189,27
499+
€186,68
999+
€181,50
Couldn't load pickup availability
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 190mm
- Width:
- 50mm

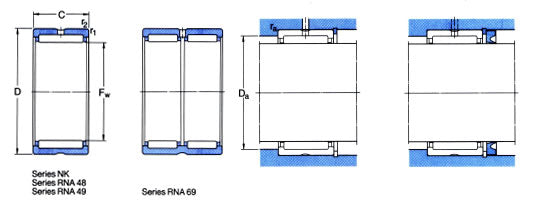

Technical
Technical
| Fw | 160mm |
|---|---|
| D | 190mm |
| C | 50mm |
| Dynamic load C | 205000 N |
| Static load Co | 510000 N |
| Fatigue load limit Pu | 58500 N |
| Speed in grease | 1600 rpm |
| Speed in oil | 2400 rpm |
| r1r2 | 1.5mm |
| Da max | 182mm |
| ra max | 1.5mm |
| Seal | CR160x190x15CRW1V |
| Weight | 2350 g |
