SKU: RNA4930-NTN

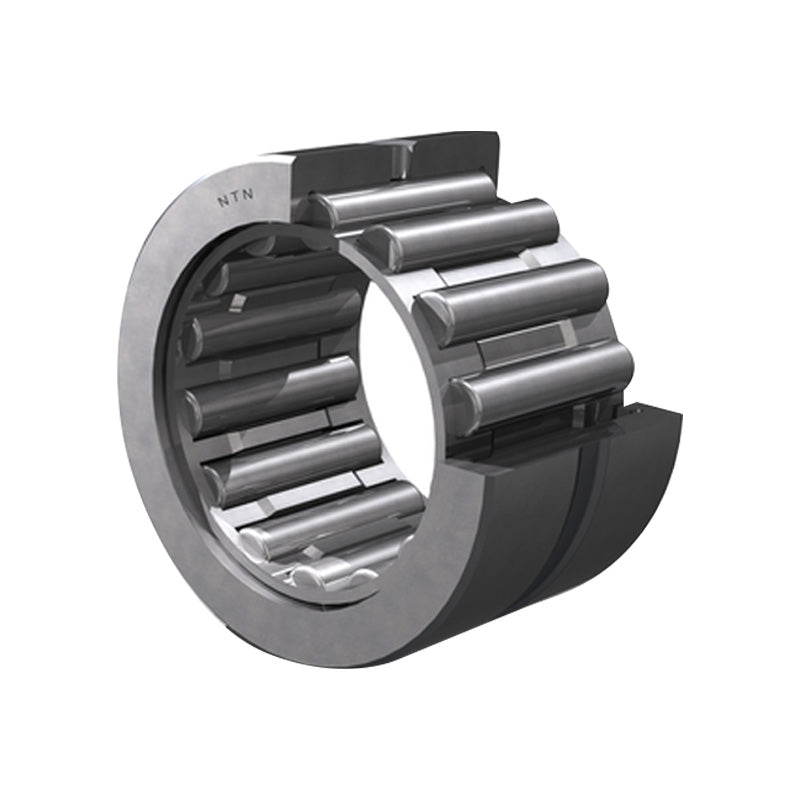

NTN RNA4930 Machined Needle Roller Bearing no Shaft Sleeve 170x210x60mm - Allow 2-3 Days

NTN RNA4930 Machined Needle Roller Bearing no Shaft Sleeve 170x210x60mm - Allow 2-3 Days
Regular price €453,06 ex VAT
Regular price Sale price €453,06 ex VAT
Sale Sold out

In stock

Price Break
3+ €383,82
4+ €368,32
9+ €360,56
19+ €348,93
49+ €341,18
99+ €321,79
499+ €271,39
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 170mm
D - Outside diameter 210mm
C - Width of bearing, drawn cup or outer ring 60mm
rs - Minimum fillet radius 2mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 4mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 261 kN
C0r - Static load rating 610 kN
N - Grease lubrication limit speed 1500 tr/min
N - Oil lubrication limit speed 2400 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 201mm
ras max - Maximum shaft & housing fillet radius 2mm
