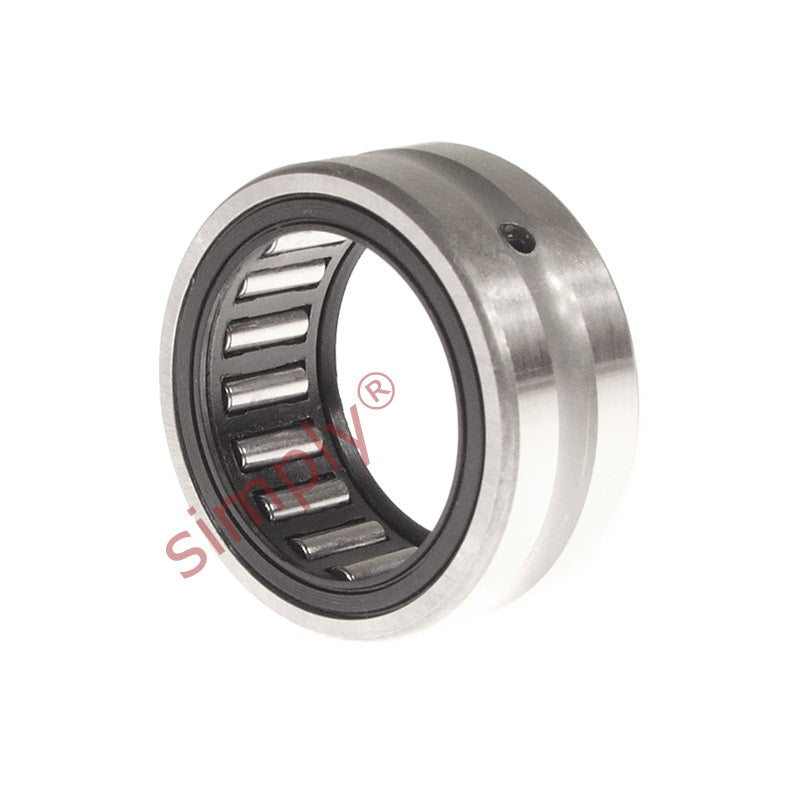

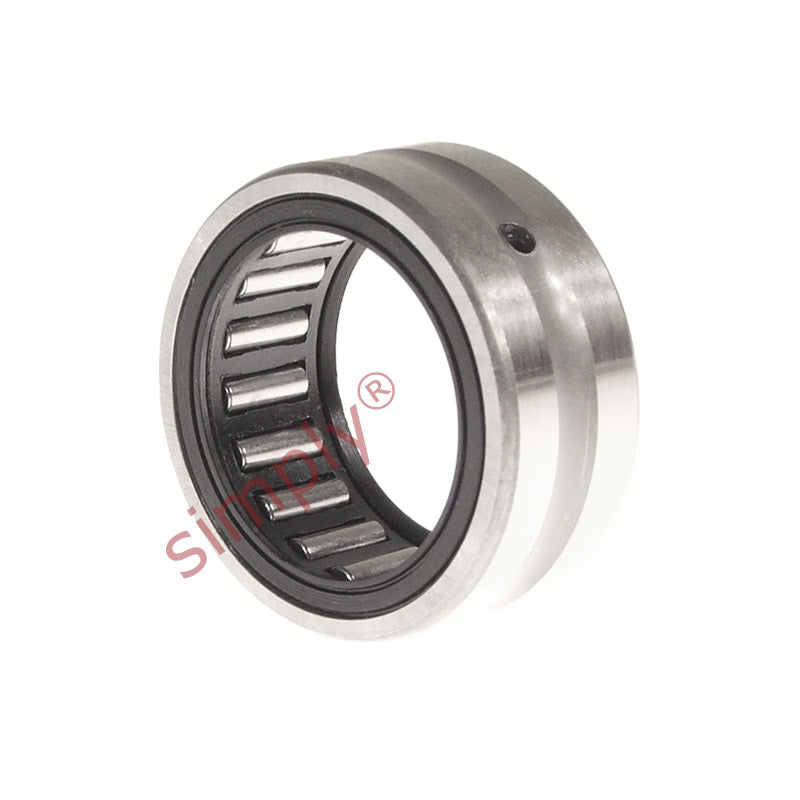

RNA6901 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 16x24x22mm
RNA6901 Budget Needle Roller Bearing with Flanges no Shaft Sleeve 16x24x22mm
Regular price
€10,81
ex VAT
Regular price
Sale price
€10,81
ex VAT
In stock
Price Break
10+
€8,23
19+
€7,77
29+
€7,68
39+
€7,59
49+
€7,49
74+
€7,40
99+
€6,94
199+
€6,85
249+
€6,75
499+
€6,66
999+
€6,48
Share this product
Description
Description
|
Budget Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 24mm
- Width:
- 22mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 24mm |
| C | 22mm |
| Dynamic load C | 16100 N |
| Static load Co | 23200 N |
| Fatigue load limit Pu | 2900 N |
| Speed in grease | 16000 rpm |
| Speed in oil | 24000 rpm |
| r1r2 | 0.3mm |
| Da max | 22mm |
| ra max | 0.3mm |
| Seal | G/SD16x24x3 |
| Weight | 31 g |
