SKU: RNA6913-MB

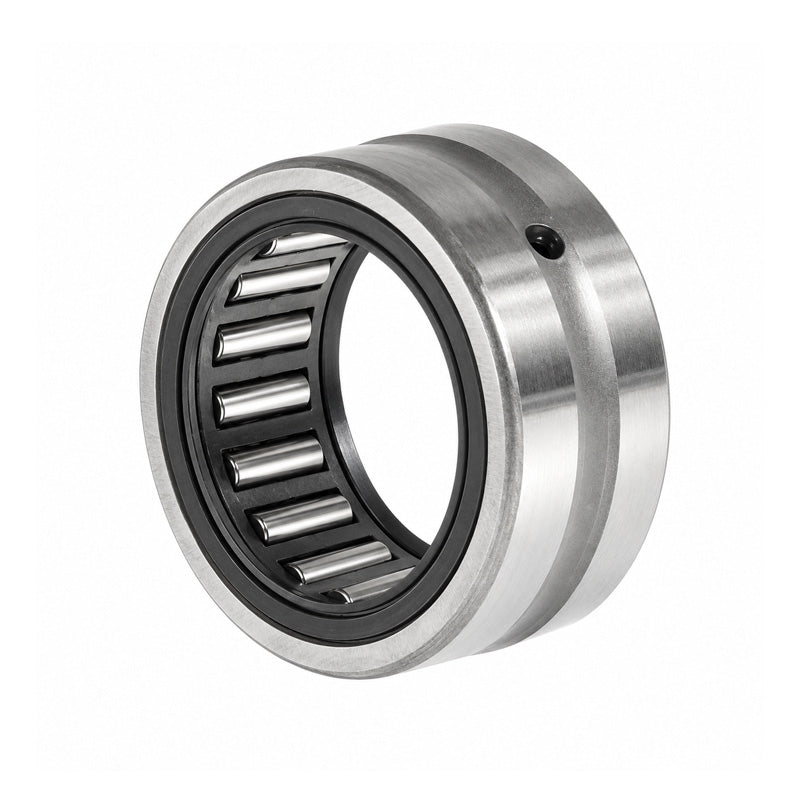

Major Brand RNA6913 Needle Roller Bearing With Flanges without Shaft Sleeve 72x90x45mm
Major Brand RNA6913 Needle Roller Bearing With Flanges without Shaft Sleeve 72x90x45mm
Regular price
€133,56
ex VAT
Regular price
Sale price
€133,56
ex VAT
In stock
Price Break
10+
€101,72
19+
€96,01
29+
€94,86
39+
€93,72
49+
€92,58
74+
€91,44
99+
€85,72
199+
€84,58
249+
€83,44
499+
€82,29
999+
€80,01
Share this product
Description
Description
|
Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 72mm
- Outside Diameter:
- 90mm
- Width:
- 45mm
Technical
Technical
| Fw | 72mm |
|---|---|
| D | 90mm |
| C | 45mm |
| Dynamic load | 95200 N |
| Static load | 212000 N |
| Fatigue load limit Pu | 27000 N |
| Speed in grease | 4000 rpm |
| Speed in oil | 5600 rpm |
| r1r2 | 1mm |
| Da max | 85mm |
| ra max | 1mm |
| Seal | CR72x90x10CRSH1R |
| Weight | 580 g |
