SKU: RNA6915R-NTN

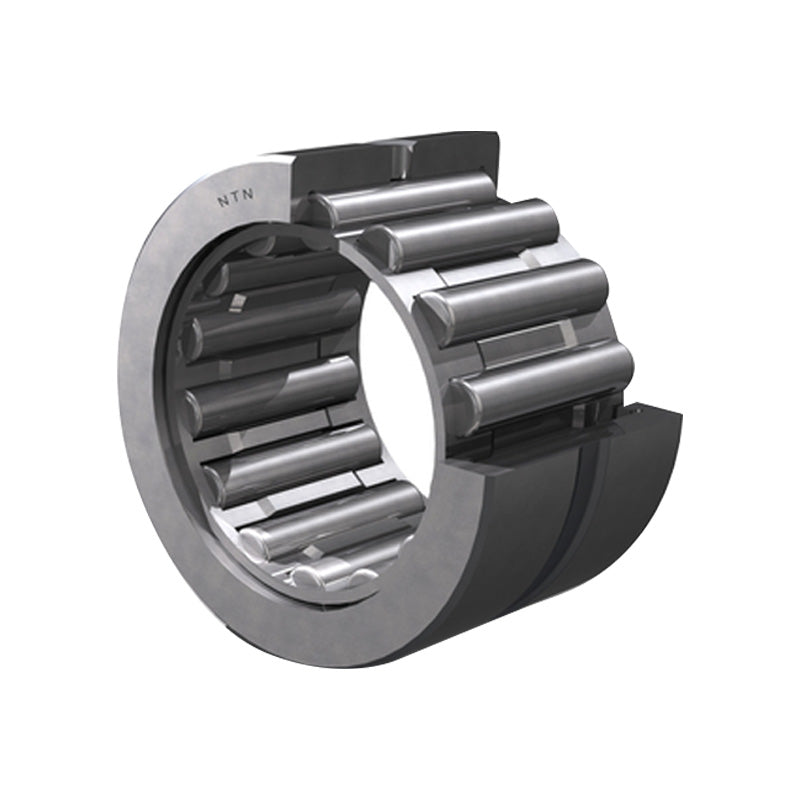

NTN RNA6915R Machined Needle Roller Bearing no Shaft Sleeve 85x105x54mm - Allow 2-3 Days

NTN RNA6915R Machined Needle Roller Bearing no Shaft Sleeve 85x105x54mm - Allow 2-3 Days
Regular price €155,27 ex VAT
Regular price Sale price €155,27 ex VAT
Sale Sold out

In stock

Price Break
3+ €131,54
4+ €126,23
9+ €123,57
19+ €119,58
49+ €116,93
99+ €110,28
499+ €93,01
999+ €0,00
1999+ €0,00
2999+ €0,00
4999+ €0,00
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 85mm
D - Outside diameter 105mm
C - Width of bearing, drawn cup or outer ring 54mm
rs - Minimum fillet radius 1mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 3.5mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 132 kN
C0r - Static load rating 277 kN
N - Grease lubrication limit speed 3100 tr/min
N - Oil lubrication limit speed 4700 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 100mm
ras max - Maximum shaft & housing fillet radius 1mm
