SKU: RNU306-SKF

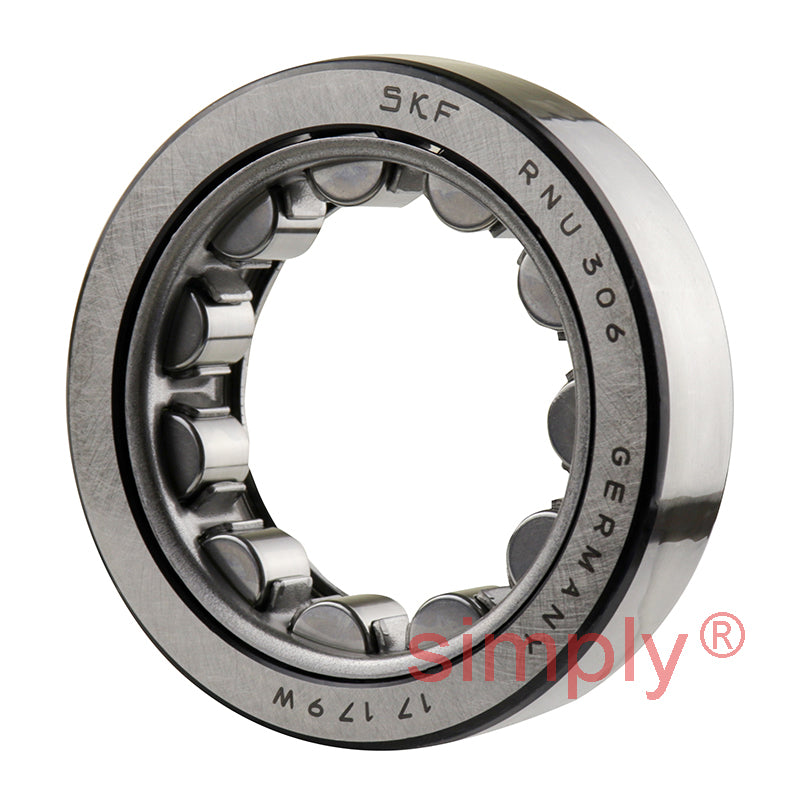

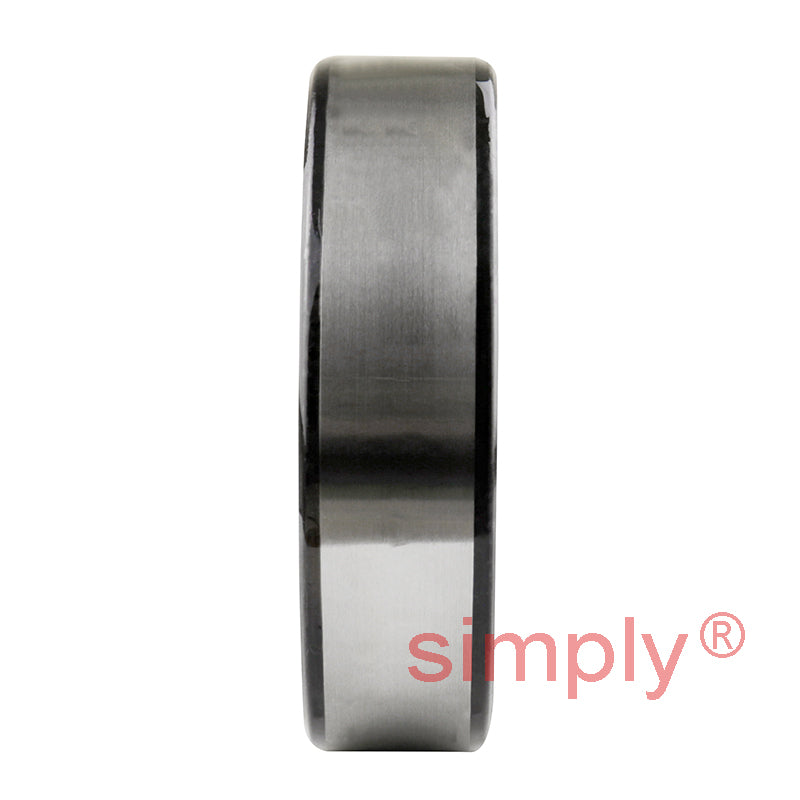

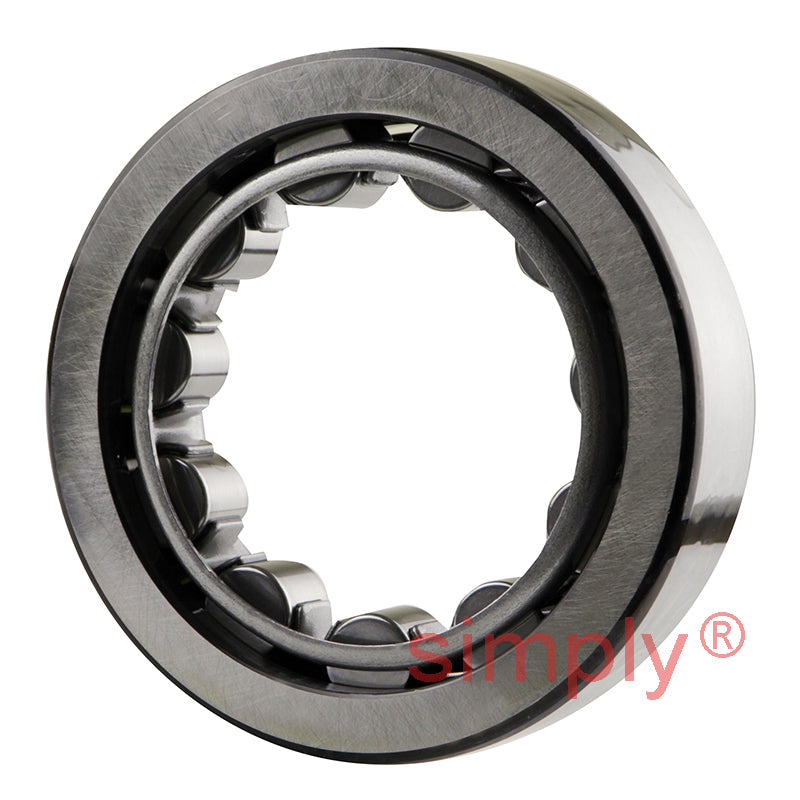

SKF RNU306 Single Row Cylindrical Roller Bearing 42x72x19mm
SKF RNU306 Single Row Cylindrical Roller Bearing 42x72x19mm
Regular price
€70,97
ex VAT
Regular price
Sale price
€70,97
ex VAT
In stock
Price Break
10+
€63,16
19+
€59,61
29+
€58,91
39+
€58,20
49+
€57,49
74+
€56,78
99+
€53,23
199+
€52,52
249+
€51,81
499+
€51,10
999+
€49,68
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 42mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
Technical
Technical
| d | 42mm |
|---|---|
| D | 72mm |
| C | 19mm |
| C1 | 4.5mm |
| Dynamic load | 36.9 kN |
| Static load | 20 kN |
| Fatigue load limit Pu | 4.25 kN |
| Reference speed | 11000rpm |
| Limiting speed | 12000rpm |
| r1,2min | 1.1mm |
| Weight | 0.25kg |
