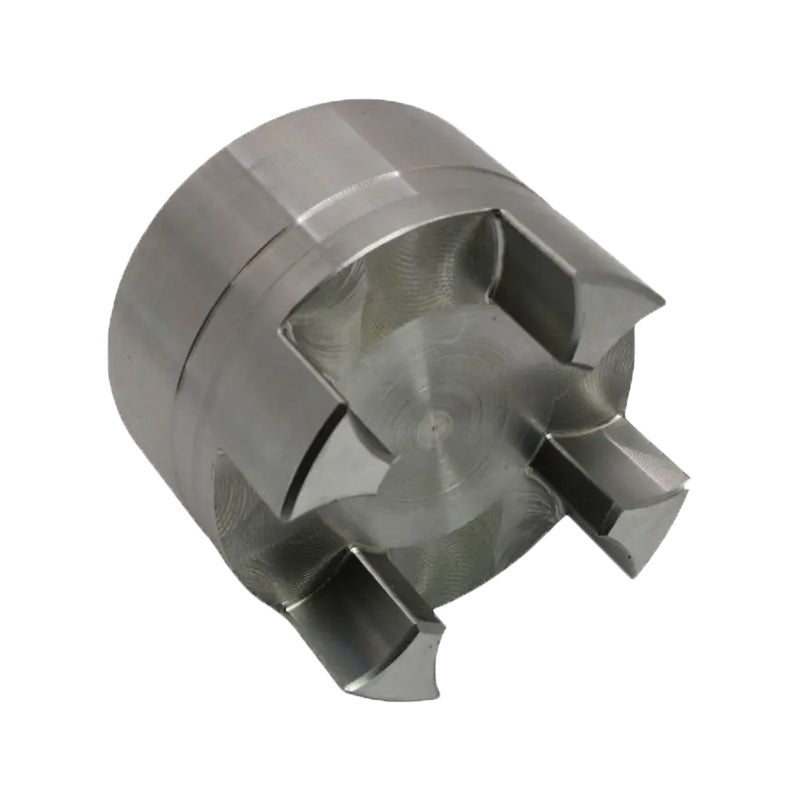

KTR Rotex 28 Large Steel Hub Un Bored Max Bore 40mm

Rotex Large Steel Unbored Hubs: Rotex large steel unbored hubs are used in a wide variety of power transmission applications where torque needs to be transferred between two rotating shafts, such as a motor and gearbox or a motor and pump. Working together with a flexible spider, they transmit torque reliably while the spider absorbs shock, vibration, and small amounts of shaft misalignment, helping protect connected equipment. This Rotex hub is manufactured from high-strength steel, offering excellent strength, rigidity and durability for higher-torque and heavy-duty applications. The large hub design provides extra material around the bore, allowing it to accommodate larger shaft diameters than a standard hub while giving a stronger, more secure shaft connection.
Benefits: High-strength, cost-effective, choice of spider hardness

Brand / Quality:

KTR - High Quality

Material:

Steel

Style:

Rotex 28

Max Bore:

40mm
