SKU: RPNA25/42-MB

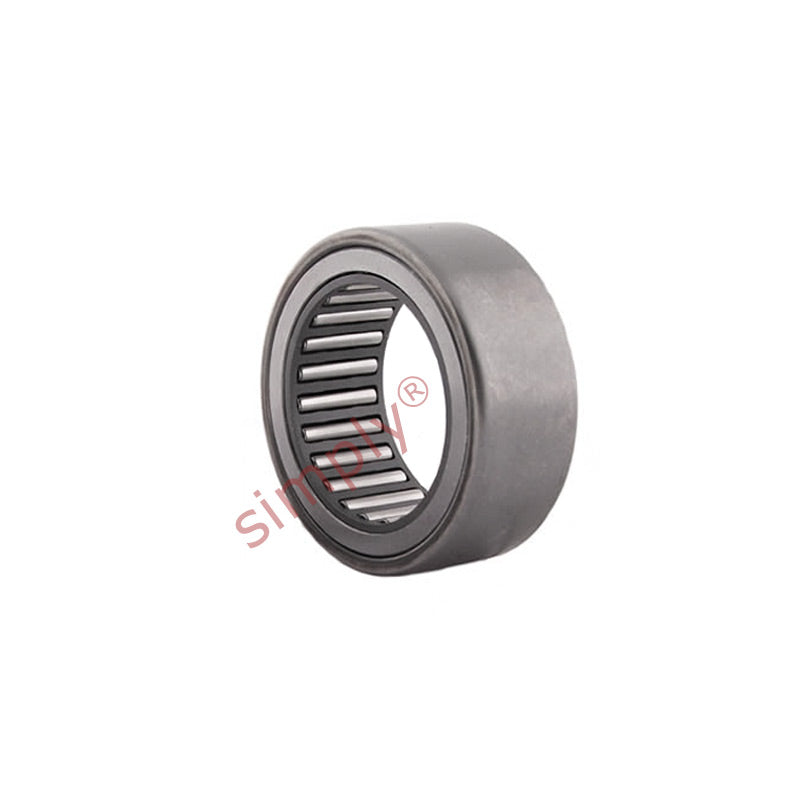

Major Brand RPNA25/42 Needle Roller Bearing Alignment Type Without Shaft Sleeve 25x42x20
Major Brand RPNA25/42 Needle Roller Bearing Alignment Type Without Shaft Sleeve 25x42x20
Regular price
€42,95
ex VAT
Regular price
Sale price
€42,95
ex VAT
In stock
Price Break
10+
€38,23
19+
€36,08
29+
€35,65
39+
€35,22
49+
€34,79
74+
€34,36
99+
€32,21
199+
€31,78
249+
€31,35
499+
€30,92
999+
€30,07
Couldn't load pickup availability
Description
Description
|
Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 42mm
- Width:
- 20mm
Technical
Technical
| Fw | 25mm |
|---|---|
| D | 42mm |
| B | 20mm |
| Dynamic load | 19000 N |
| Static load | 32500 N |
| Fatigue load limit Pu | 4000 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| D1 | 36.5mm |
| r min | 1mm |
| Da min | 35mm |
| Da max | 37mm |
| ra max | 1mm |
| Weight | 110 g |
