SKU: SALKAC16M-CDX

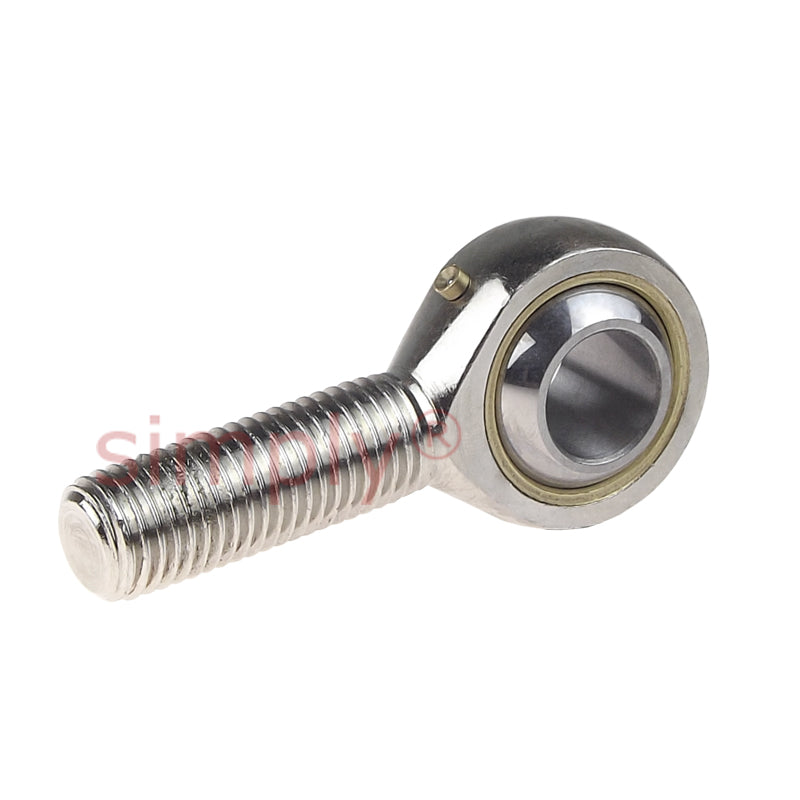

Codex SALKAC16M Left Hand Steel / Bronze Lined Plain Male Rod End M16 Thread
Codex SALKAC16M Left Hand Steel / Bronze Lined Plain Male Rod End M16 Thread
Regular price
€27,39
ex VAT
Regular price
Sale price
€27,39
ex VAT
Equivalent to: POS16L MBL-M16
In stock
Price Break
10+
€20,86
19+
€19,69
29+
€19,45
39+
€19,22
49+
€18,98
74+
€18,75
99+
€17,58
199+
€17,34
249+
€17,11
499+
€16,87
999+
€16,41
Description
Description
|
SAKAC..M Series Rod End Bearings: These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |
Equivalent: POS16L MBL-M16
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Material:
- Bronze Lined
Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16 |
| B | 21mm |
| C1 max | 15mm |
| h1 | 66mm |
| Max misalignment angle | 15 degrees |
| Dynamic load | 21.6 kN |
| Static load | 23.2 kN |
| dk | 28.5mm |
| l1 min | 37mm |
| l2 max | 89mm |
| r1 min | 0.3mm |
| Weight | 0.19 kg |
