SKU: SALKB10F-SKF

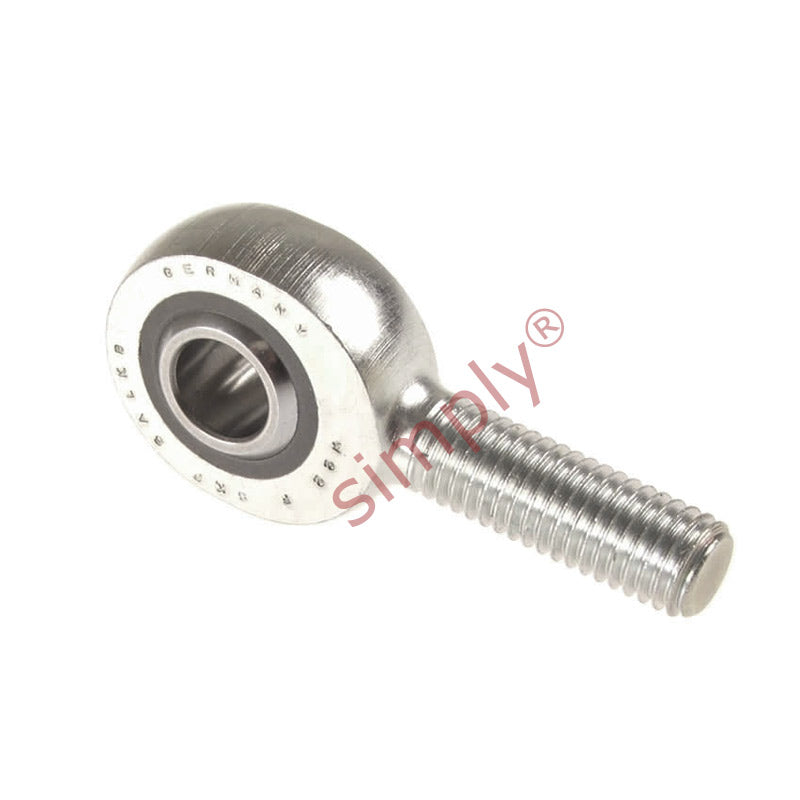

SKF SALKB10F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
SKF SALKB10F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M10 Thread
Regular price
€45,06
ex VAT
Regular price
Sale price
€45,06
ex VAT
Equivalent to: MSL-M10
In stock
Price Break
10+
€34,31
19+
€32,39
29+
€32,00
39+
€31,62
49+
€31,23
74+
€30,84
99+
€28,92
199+
€28,53
249+
€28,15
499+
€27,76
999+
€26,99
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M10
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M10
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 10mm |
|---|---|
| d2 max | 29mm |
| G | M10 |
| B | 14mm |
| C1 max | 10.5mm |
| h | 48mm |
| a | 13deg |
| Dynamic load C | 9.8 kN |
| Static load Co | 12.5 kN |
| Weight | 0.059 kg |
| dk | 19mm |
| l1 min | 28mm |
| l2 max | 64mm |
| r1 min | 0.3mm |
