SKU: SALKB16F-SKF

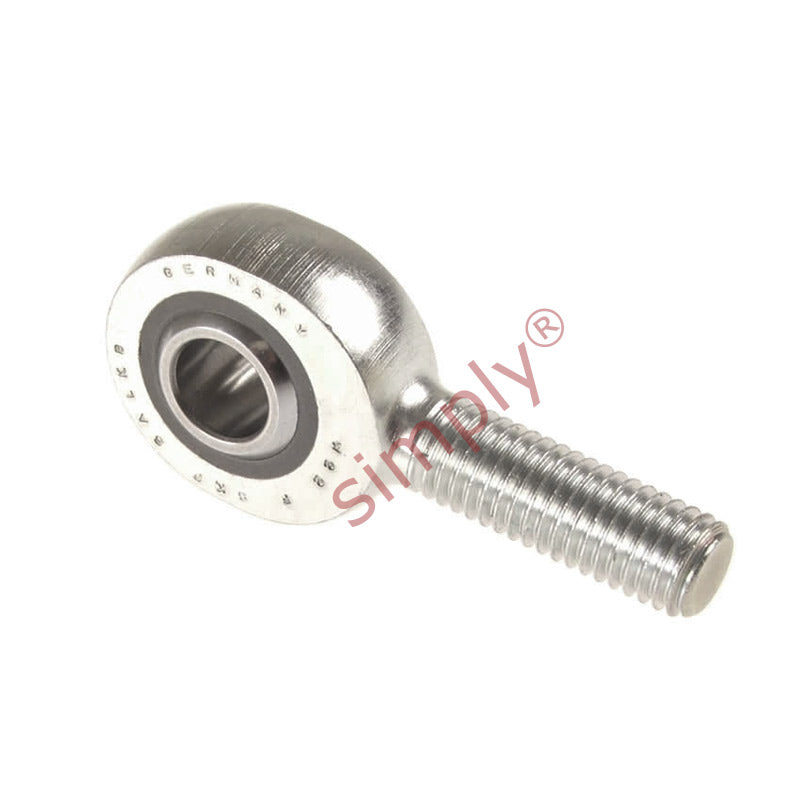

SKF SALKB16F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
SKF SALKB16F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M16 Thread
Regular price
€61,68
ex VAT
Regular price
Sale price
€61,68
ex VAT
Equivalent to: MSL-M16
In stock
Price Break
10+
€46,98
19+
€44,34
29+
€43,81
39+
€43,28
49+
€42,76
74+
€42,23
99+
€39,59
199+
€39,06
249+
€38,53
499+
€38,00
999+
€36,95
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M16
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE FRP Lined

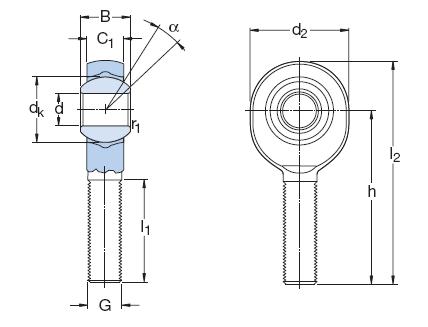

Technical
Technical
| d | 16mm |
|---|---|
| d2 max | 43mm |
| G | M16 |
| B | 21mm |
| C1 max | 15mm |
| h | 66mm |
| a | 15deg |
| Dynamic load C | 21.4 kN |
| Static load Co | 34.5 kN |
| Weight | 0.2 kg |
| dk | 28.5mm |
| l1 min | 37mm |
| l2 max | 89mm |
| r1 min | 0.3mm |
