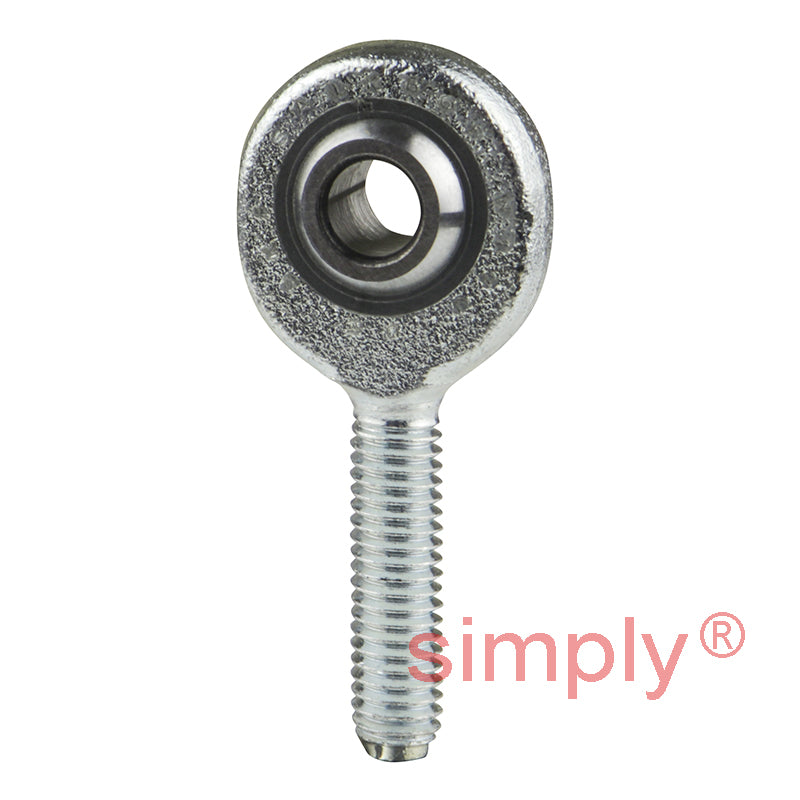

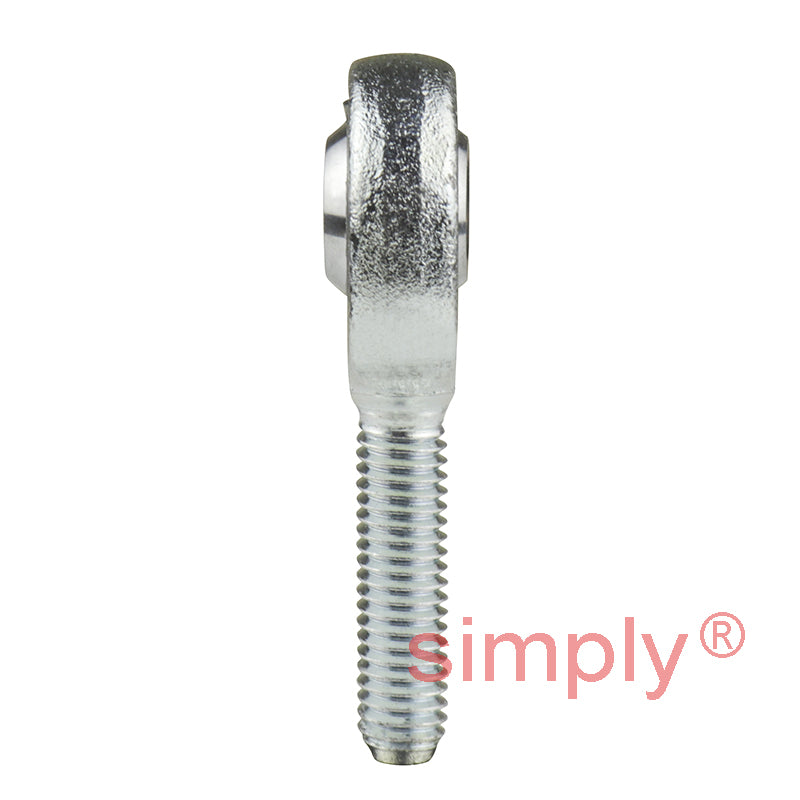

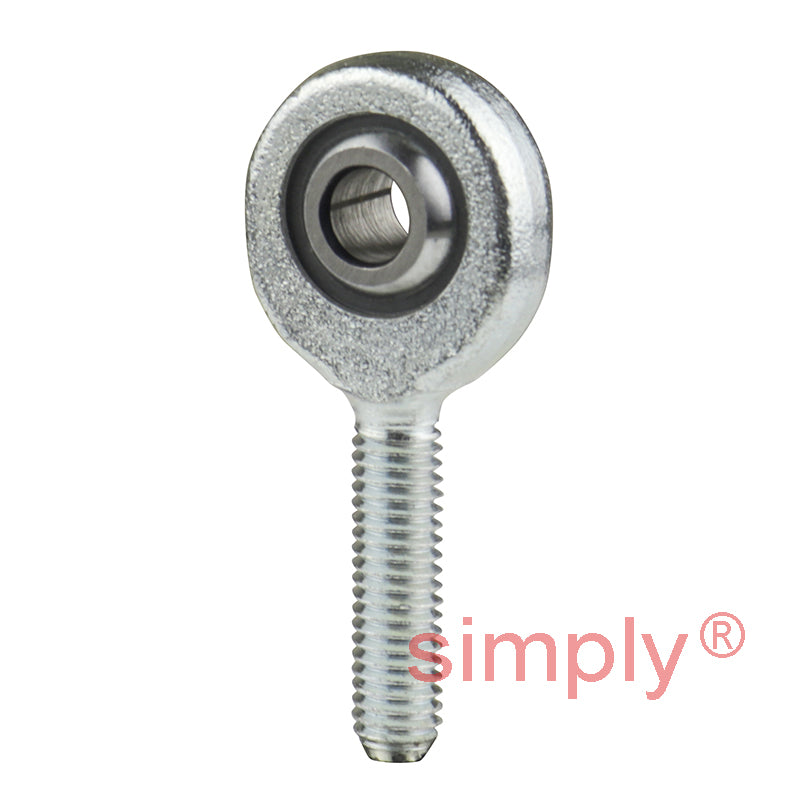

SKF SALKB6F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M6 Thread
SKF SALKB6F Left Hand Steel / PTFE FRP Lined Plain Male Rod End M6 Thread
Regular price
€32,09
ex VAT
Regular price
Sale price
€32,09
ex VAT
Equivalent to: MSL-M06
In stock
Price Break
10+
€24,44
19+
€23,07
29+
€22,79
39+
€22,52
49+
€22,24
74+
€21,97
99+
€20,60
199+
€20,32
249+
€20,05
499+
€19,77
999+
€19,22
Description
Description
|
SKF Left Hand Thread Male Rod End: Maintenance-free rod ends with male, thread with sliding contact surface combination steel/PTFE composite. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE composite |
Equivalent: MSL-M06
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M6
- Thread M / F:
- Male
- Thread Direction:
- Left Hand
- Inside Diameter:
- 6mm
- Material:
- PTFE FRP Lined
Technical
Technical
| d | 6mm |
|---|---|
| d2 max | 21mm |
| G | M6 |
| B | 9mm |
| C1 max | 6.75mm |
| h | 36mm |
| a | 13deg |
| Dynamic load C | 4.25 kN |
| Static load Co | 6.8 kN |
| Weight | 0.021 kg |
| dk | 12.7mm |
| l1 min | 21mm |
| l2 max | 48mm |
| r1 min | 0.3mm |
