SKU: SB.205-14

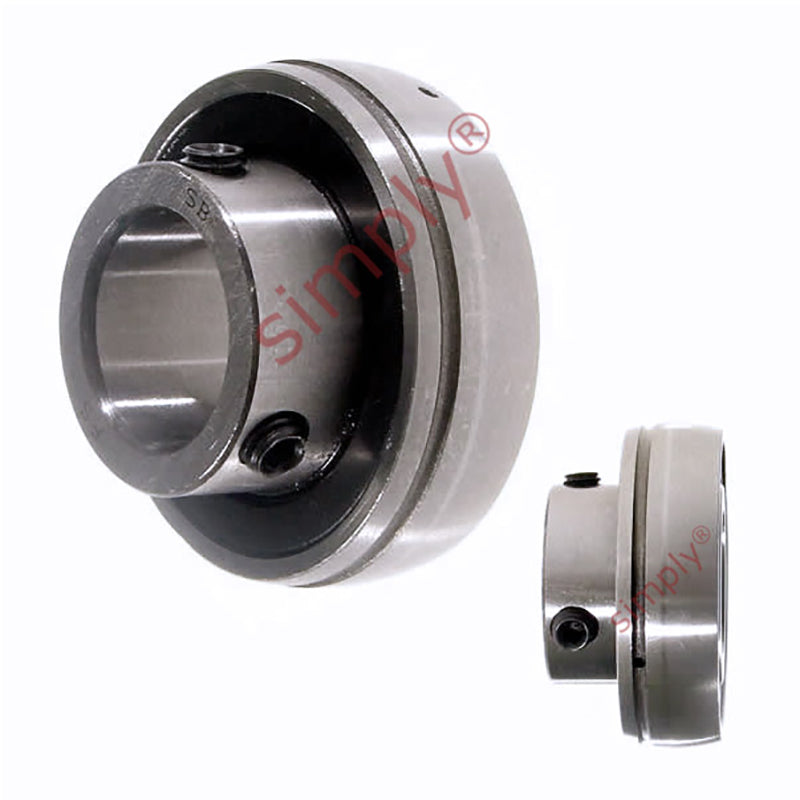

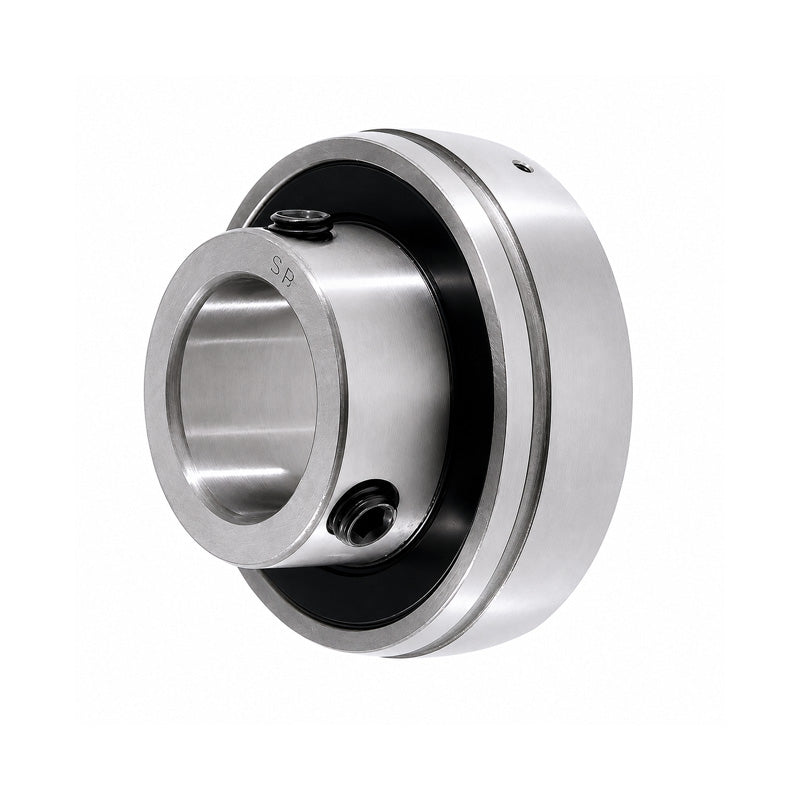

SB205-14 Imperial Bearing Insert with 7/8 inch Bore 52mm Outside Dia
SB205-14 Imperial Bearing Insert with 7/8 inch Bore 52mm Outside Dia
Regular price
€7,74
ex VAT
Regular price
Sale price
€7,74
ex VAT
In stock
Price Break
3+
€5,89
4+
€5,56
9+
€5,49
19+
€5,43
49+
€5,36
99+
€5,30
499+
€4,96
999+
€4,90
1999+
€4,83
2999+
€4,77
4999+
€4,63
Share this product
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Outside Diameter:
- 52mm
- Style:
- SB
Technical
Technical
| d | 7/8 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
