SKU: SB.205-15

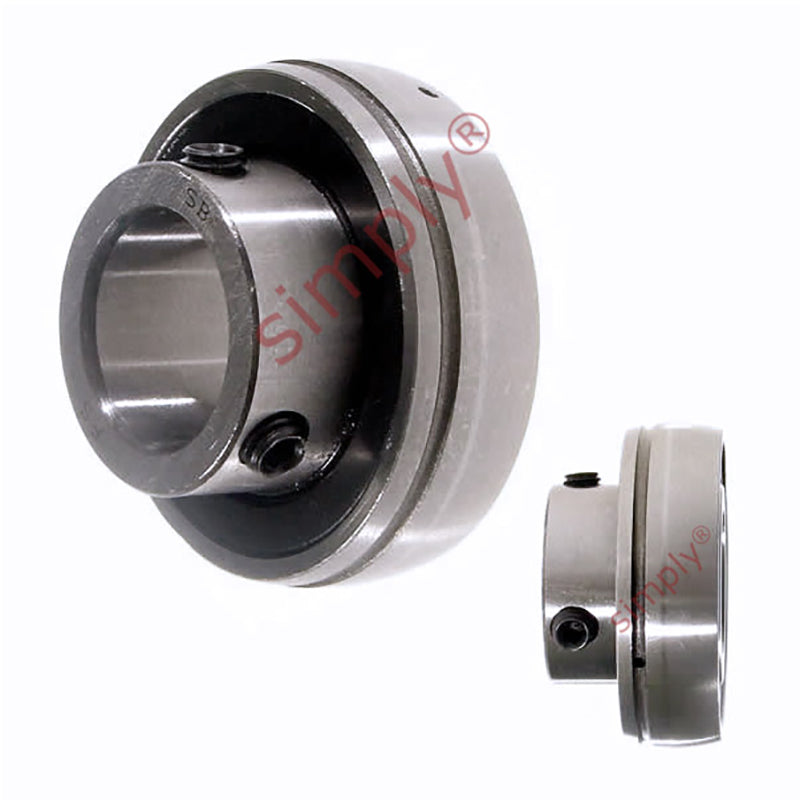

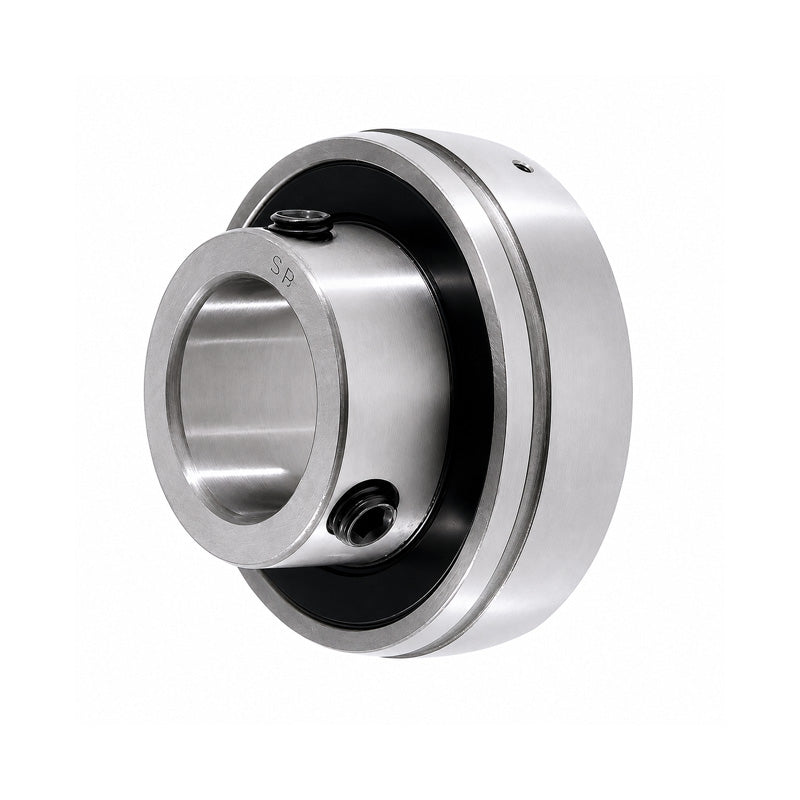

SB205-15 Imperial Bearing Insert with 15/16 inch Bore 52mm Outside Dia
SB205-15 Imperial Bearing Insert with 15/16 inch Bore 52mm Outside Dia
Regular price
€15,23
ex VAT
Regular price
Sale price
€15,23
ex VAT
In stock
Price Break
10+
€13,55
19+
€12,79
29+
€12,64
39+
€12,49
49+
€12,34
74+
€12,18
99+
€11,42
199+
€11,27
249+
€11,12
499+
€10,97
999+
€10,66
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Outside Diameter:
- 52mm
- Style:
- SB
- Type:
- Spherical Outer
Technical
Technical
| d | 15/16 inch |
|---|---|
| Be | 15mm |
| D | 52mm |
| Bi | 27mm |
| n | 7mm |
| m | 18mm |
| G | 4.5mm |
| h | 3.9mm |
| Grub screw | 1/4"X28 UNF |
| Weight | 0.18 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
