SKU: SB.207

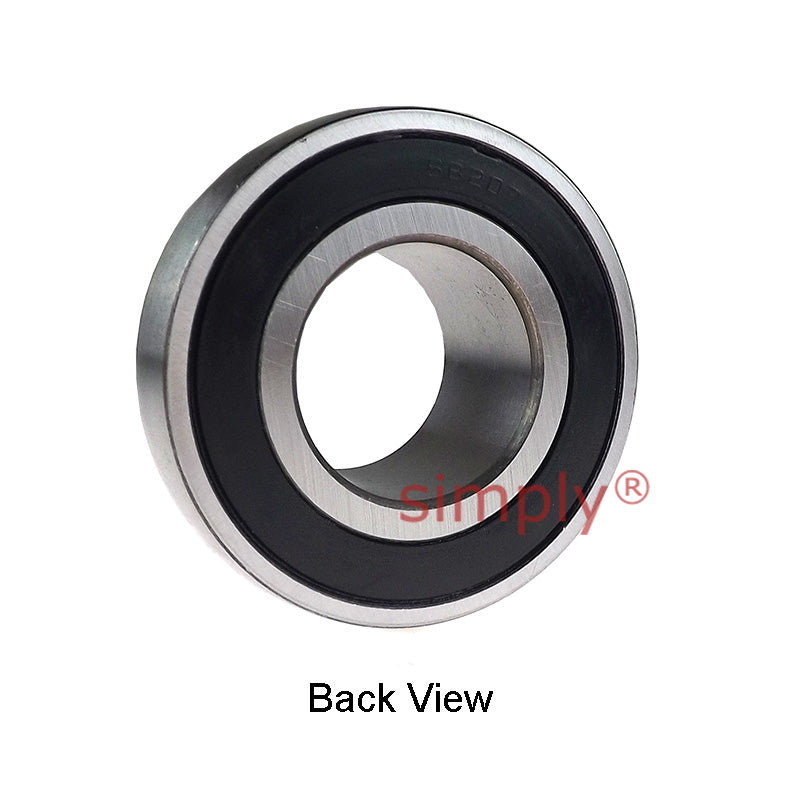

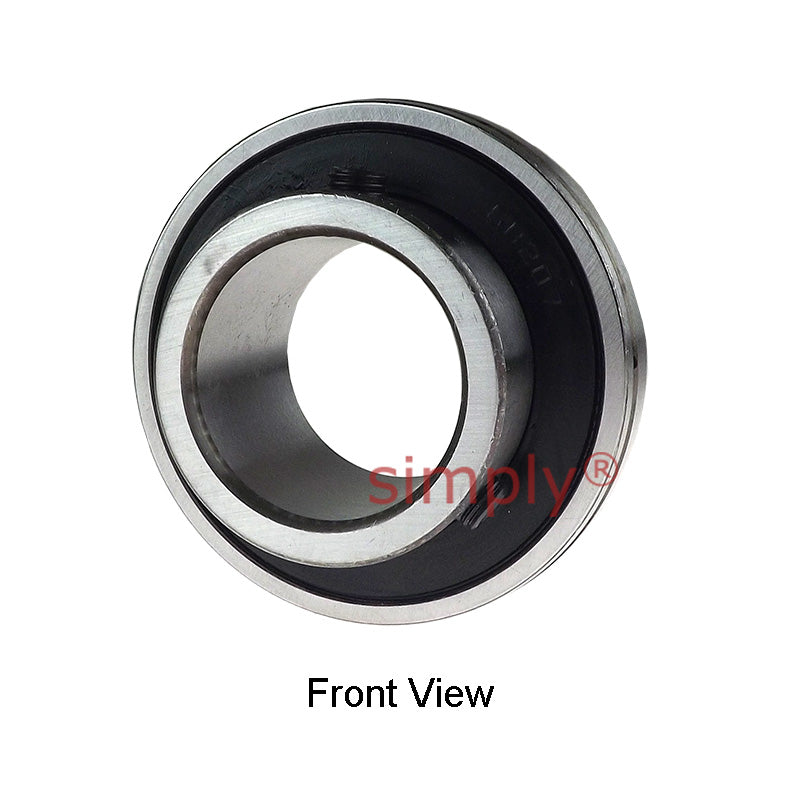

SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
SB207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
€10,65
ex VAT
Regular price
Sale price
€10,65
ex VAT
In stock
Price Break
10+
€9,48
19+
€8,95
29+
€8,84
39+
€8,73
49+
€8,63
74+
€8,52
99+
€7,99
199+
€7,88
249+
€7,77
499+
€7,67
999+
€7,46
Couldn't load pickup availability
Description
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- SB
Technical
Technical
| d | 35mm |
|---|---|
| Be | 17mm |
| D | 72mm |
| Bi | 32mm |
| n | 8.5mm |
| m | 23.5mm |
| G | 6.5mm |
| h | 5.5mm |
| Grub screw | M8X1.0 |
| Weight | 0.42 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
