SKU: SBFW205-14

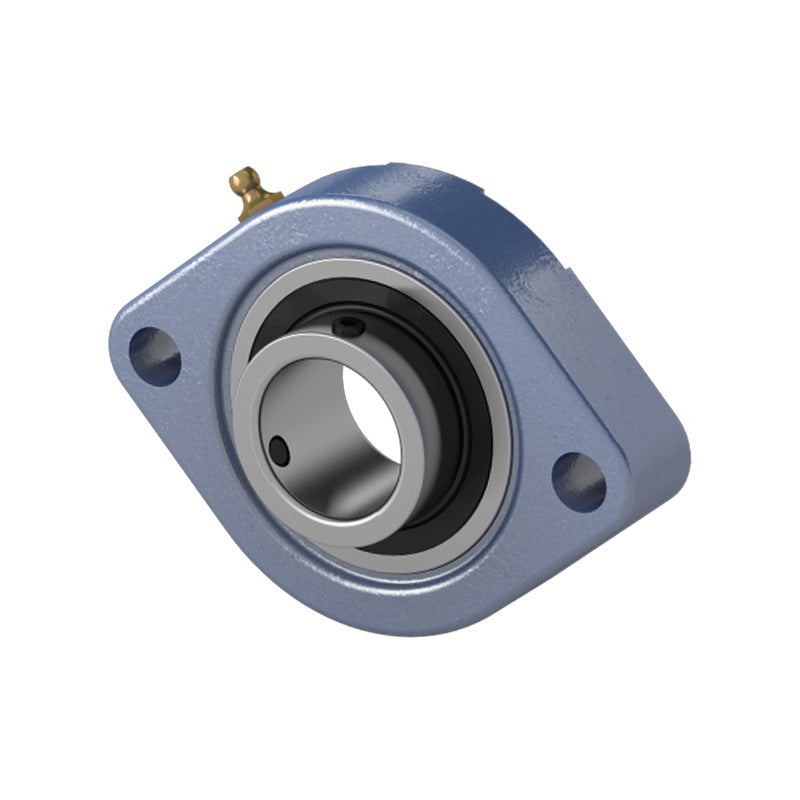

SBFW205-14 Imperial Two Bolt Cast Iron Oval Housing with 7/8 inch Bore
SBFW205-14 Imperial Two Bolt Cast Iron Oval Housing with 7/8 inch Bore
Regular price
€13,47
ex VAT
Regular price
Sale price
€13,47
ex VAT
In stock
Price Break
10+
€11,99
19+
€11,31
29+
€11,18
39+
€11,05
49+
€10,91
74+
€10,78
99+
€10,10
199+
€9,97
249+
€9,83
499+
€9,70
999+
€9,43
Couldn't load pickup availability
Description
Description
|
SBFW Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required. This housing is a very compact design, it's height is little more than the width of the insert bearing thus making it suitable for very compact installations. Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SBFW
- Bolt Hole Centres:
- 76.2mm
Technical
Technical
| d | 7/8 inch |
|---|---|
| a | 97mm |
| e | 76.2mm |
| b | 71mm |
| i | 9.5mm |
| s | 9mm |
| l | 17.5mm |
| Bolt | M8 |
| z | 29mm |
| B | 27mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
