SKU: SBLF.205-15
SBLF205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore Grub Screw Insert - Allow 2-3 Days
SBLF205-15 Imperial Two Bolt Cast Iron Oval Housing with 15/16 inch Bore Grub Screw Insert - Allow 2-3 Days
Regular price
€10,33
ex VAT
Regular price
Sale price
€10,33
ex VAT
In stock
Price Break
3+
€8,75
4+
€8,40
9+
€8,22
19+
€7,96
49+
€7,78
99+
€7,34
499+
€6,19
999+
€0,00
1999+
€0,00
2999+
€0,00
4999+
€0,00
Description
Description
|

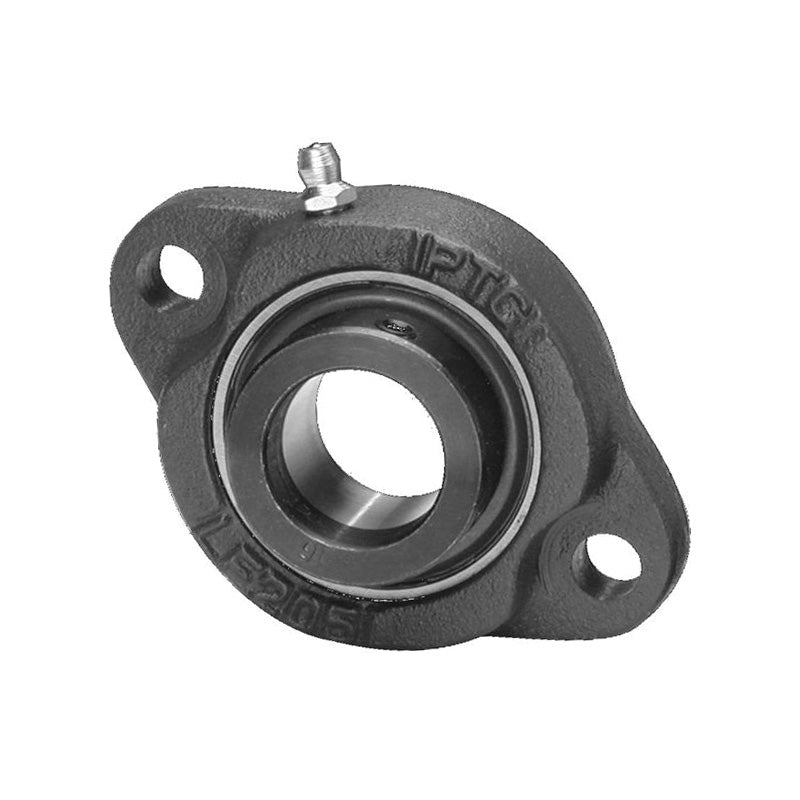

SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 76mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| a | 95mm |
| e | 76mm |
| b | 64mm |
| i | 11mm |
| s | 10mm |
| g | 11mm |
| l | 20mm |
| Bolt | M8 |
| z | 30.5mm |
| n | 7.5mm |
| Weight | 0.5 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
