SKU: SER.212

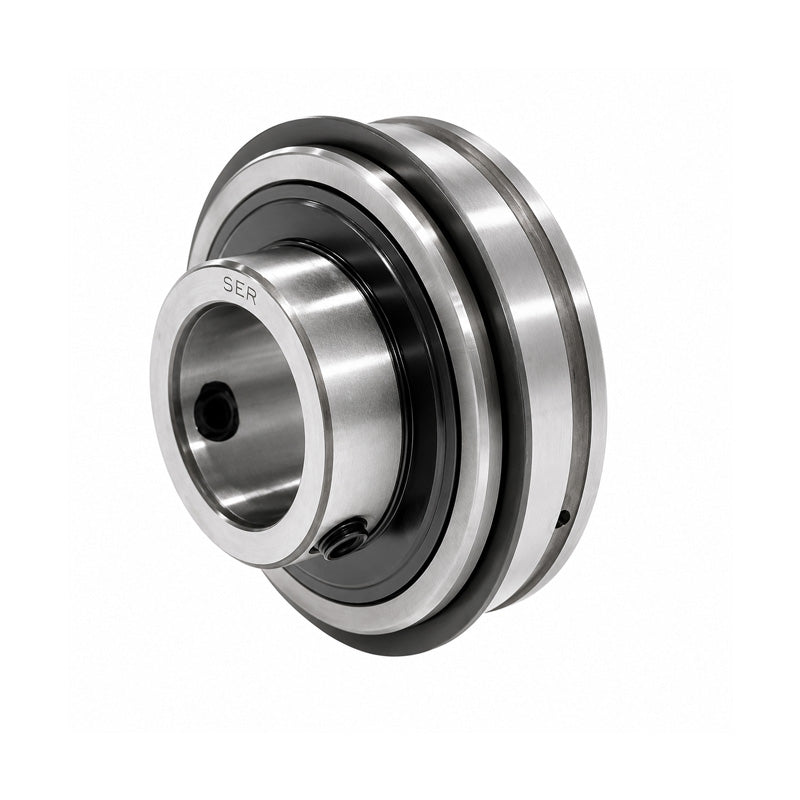

SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
SER212 Metric Bearing Insert and Snap Ring 60mm Bore 110mm Outside Dia
Regular price
€50,04
ex VAT
Regular price
Sale price
€50,04
ex VAT
In stock
Price Break
3+
€38,11
4+
€35,97
9+
€35,54
19+
€35,11
49+
€34,68
99+
€34,26
499+
€32,11
999+
€31,69
1999+
€31,26
2999+
€30,83
4999+
€29,97
Description
Description
|
SER or 11--CG Series Normal Duty Bearing Insert: This insert type is a fully sealed bearing with a parallel outer diameter and comes fitted with a snap ring, they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft once fitted. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- SER
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 31.8mm |
| n | 25.4mm |
| m | 39.7mm |
| E | 25.82mm |
| a | 2.41mm |
| h | 7.5mm |
| R | 9.92mm |
| J | 3.28mm |
| P | 116.6mm |
| G | 11.1mm |
| Grub screw | M10x1.0 |
| Weight | 1.71 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
