SKU: SF15/16-RHP

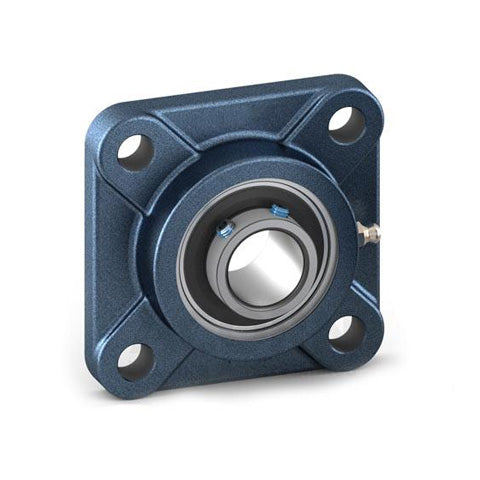

RHP SF15/16 Four Bolt Square Cast Iron Flange Housing and 15/16 inch Bore Grub Screw Full Width Insert
RHP SF15/16 Four Bolt Square Cast Iron Flange Housing and 15/16 inch Bore Grub Screw Full Width Insert
Regular price
€48,75
ex VAT
Regular price
Sale price
€48,75
ex VAT
In stock
Price Break
10+
€43,39
19+
€40,95
29+
€40,46
39+
€39,98
49+
€39,49
74+
€39,00
99+
€36,56
199+
€36,08
249+
€35,59
499+
€35,10
999+
€34,13
Couldn't load pickup availability
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SF
- Bolt Hole Centres:
- 70.002mm = 2.756 inch
Technical
Technical
| Bore | 15/16 inch |
|---|---|
| L | 3.752 inch |
| H | 2.677 inch |
| J | 2.756 inch |
| G | 0.4375 inch |
| A | 1.126 |
| A1 | 1.529 inch |
| A4 | 0.437 inch |
| B | 1.343 |
| s | 0.564 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static Load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1025-15/16G+insonly">1025-15/16G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
