SKU: SFT1.1/8DEC-RHP

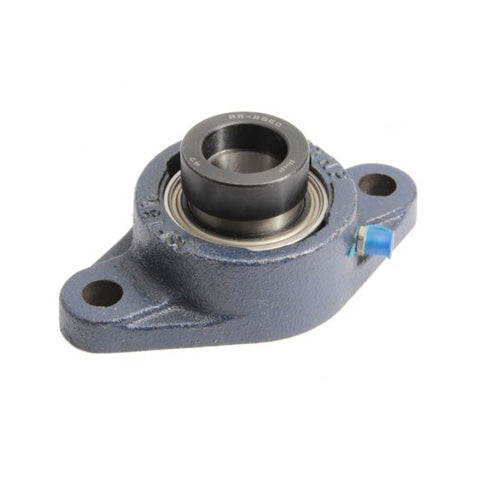

RHP SFT1-1/8DEC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
RHP SFT1-1/8DEC Two Bolt Oval Cast Iron Flange Housing 1-1/8 inch Bore Insert
Regular price
€67,90
ex VAT
Regular price
Sale price
€67,90
ex VAT
In stock
Price Break
10+
€60,43
19+
€57,04
29+
€56,36
39+
€55,68
49+
€55,00
74+
€54,32
99+
€50,93
199+
€50,25
249+
€49,57
499+
€48,89
999+
€47,53
Couldn't load pickup availability
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- SFT
- Bolt Hole Centres:
- 116.51mm = 4.587 inch
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| L | 3.252 inch |
| H | 5.563 inch |
| J | 4.587 inch |
| G | 0.4375 inch |
| A | 1.173 inch |
| A3 | 1.972 inch |
| A4 | 0.5 inch |
| B3 | 1.906 inch |
| s2 | 0.721 inch |
| d2 | 1.75 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1030-1-1/8DECG+insonly">1030-1-1/8DECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
