SKU: SFT17-RHP

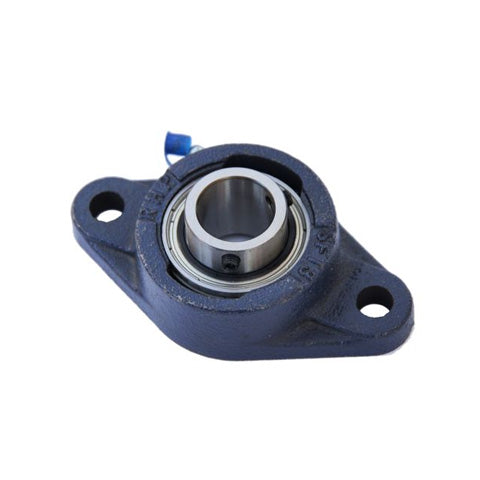

RHP SFT17 Two Bolt Oval Cast Iron Flange Housing 17mm Bore Insert
RHP SFT17 Two Bolt Oval Cast Iron Flange Housing 17mm Bore Insert
Regular price
€38,24
ex VAT
Regular price
Sale price
€38,24
ex VAT
In stock
Price Break
10+
€34,03
19+
€32,12
29+
€31,74
39+
€31,36
49+
€30,97
74+
€30,59
99+
€28,68
199+
€28,30
249+
€27,92
499+
€27,53
999+
€26,77
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a full width sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 17mm
- Style:
- SFT
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| Bore | 17mm |
|---|---|
| L | 52.5mm |
| H | 98.5mm |
| J | 76.5mm |
| G | 10mm |
| A | 24.6mm |
| A1 | 32.87mm |
| A4 | 9.5mm |
| B | 27.38mm |
| s | 11.55mm |
| d1 | 24.21mm |
| Dynamic load Cr | 9550 N |
| Static load Cor | 4800 N |
| Rec max speed | 7000 rpm |
| Weight | 0.4 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-17G+insonly">1017-17G Click Here</a> |
| Casting group | SFT1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
