SKU: SFT20A-RHP

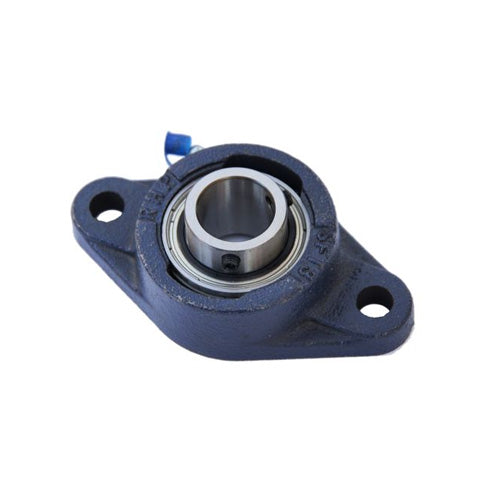

RHP SFT20A Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
RHP SFT20A Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Regular price
€38,24
ex VAT
Regular price
Sale price
€38,24
ex VAT
In stock
Price Break
10+
€34,03
19+
€32,12
29+
€31,74
39+
€31,36
49+
€30,97
74+
€30,59
99+
€28,68
199+
€28,30
249+
€27,92
499+
€27,53
999+
€26,77
Couldn't load pickup availability
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SFT
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 60.3mm |
| H | 111.9mm |
| J | 90mm |
| G | 10mm |
| A | 27.8mm |
| A1 | 37.26mm |
| A4 | 11.1mm |
| B1 | 25.77mm |
| s1 | 7.56mm |
| d1 | 28.5mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1220-20AG+insonly">1220-20AG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
