SKU: SFT20DEC-RHP

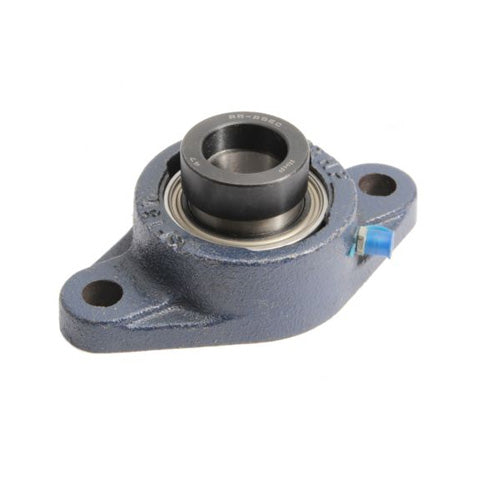

RHP SFT20DEC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
RHP SFT20DEC Two Bolt Oval Cast Iron Flange Housing 20mm Bore Insert
Regular price
€46,61
ex VAT
Regular price
Sale price
€46,61
ex VAT
In stock
Price Break
10+
€41,48
19+
€39,15
29+
€38,69
39+
€38,22
49+
€37,75
74+
€37,29
99+
€34,96
199+
€34,49
249+
€34,03
499+
€33,56
999+
€32,63
Couldn't load pickup availability
Description
Description
|
RHP SFT DEC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 20mm
- Style:
- SFT
- Bolt Hole Centres:
- 90mm
Technical
Technical
| Bore | 20mm |
|---|---|
| L | 60.3mm |
| H | 111.9mm |
| J | 90mm |
| G | 10mm |
| A | 27.8mm |
| A3 | 45.54mm |
| A4 | 11.1mm |
| B3 | 43.62mm |
| s2 | 17.12mm |
| d2 | 33.3mm |
| Dynamic load Cr | 12800 N |
| Static load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-20DECG+insonly">1020-20DECG Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
