SKU: SFT30EC-RHP

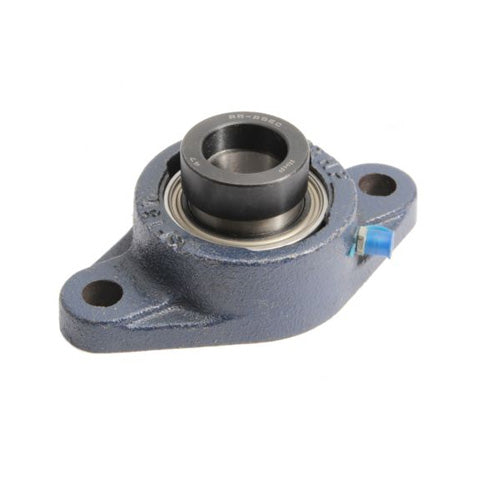

RHP SFT30EC Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
RHP SFT30EC Two Bolt Oval Cast Iron Flange Housing 30mm Bore Insert
Regular price
€54,67
ex VAT
Regular price
Sale price
€54,67
ex VAT
In stock
Price Break
10+
€48,66
19+
€45,92
29+
€45,38
39+
€44,83
49+
€44,28
74+
€43,74
99+
€41,00
199+
€40,46
249+
€39,91
499+
€39,36
999+
€38,27
Couldn't load pickup availability
Description
Description
|
RHP SFT EC Series 2 Bolt Oval Cast Iron Housing Units: Two bolt oval cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Style:
- SFT
- Bolt Hole Centres:
- 116.5mm
Technical
Technical
| Bore | 30mm |
|---|---|
| L | 82.6mm |
| H | 141.3mm |
| J | 116.5mm |
| G | 10mm |
| A | 29.8mm |
| A2 | 46.66mm |
| A4 | 12.7mm |
| B2 | 35.68mm |
| s1 | 9.04mm |
| d2 | 44.45mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 1.1 kg |
| Insert | <a href="advanced_search_result.php?keywords=1230-30ECG+insonly">1230-30ECG Click Here</a> |
| Casting group | 4 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
