SKU: SIL17C-CDX

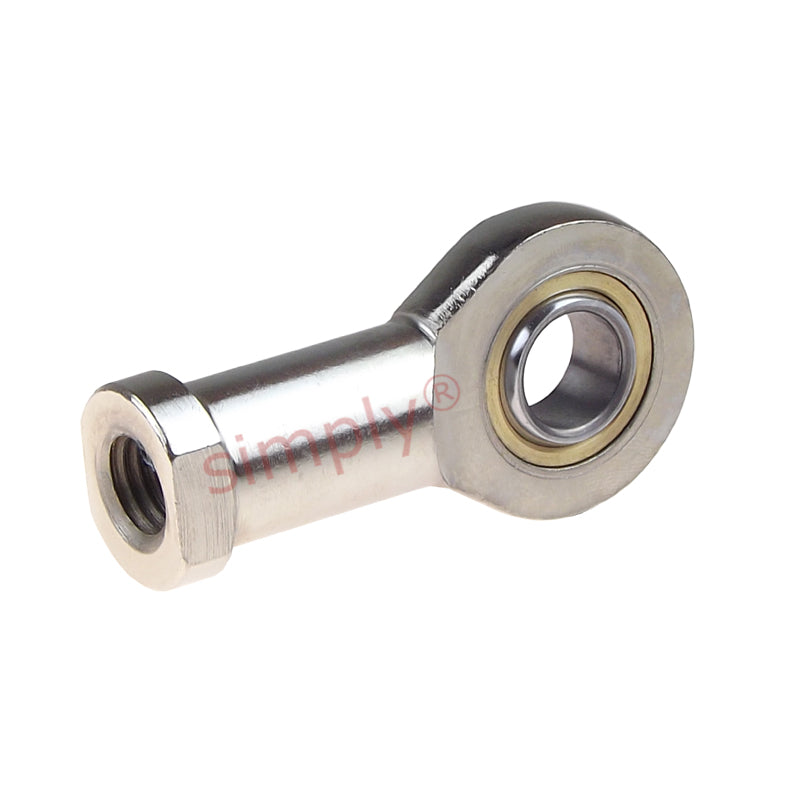

Codex SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread
Codex SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread
Regular price
€30,94
ex VAT
Regular price
Sale price
€30,94
ex VAT
Equivalent to: GIL17UK
In stock
Price Break
10+
€23,57
19+
€22,25
29+
€21,98
39+
€21,72
49+
€21,45
74+
€21,19
99+
€19,86
199+
€19,60
249+
€19,33
499+
€19,07
999+
€18,54
Description
Description
| Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL17UK
- Brand / Quality:
- Codex - Good Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 17mm
- Material:
- PTFE Sintered Bronze Lined

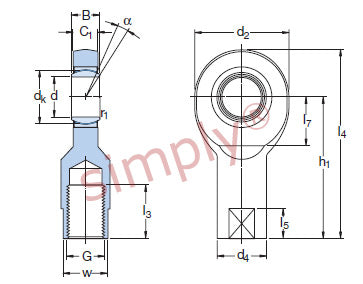

Technical
Technical
| d | 17mm |
|---|---|
| d2 max | 47mm |
| G | M16 |
| B | 14mm |
| C1 max | 11.5mm |
| h1 | 67mm |
| Max misalignment angle | 10 degrees |
| Dynamic load | 22.4 kN |
| Static load | 46.5 kN |
| dk | 25mm |
| d4 | 25mm |
| l3 min | 24mm |
| l4 max | 92mm |
| l5 | 15mm |
| l7 min | 22mm |
| r1 min | 0.3mm |
| w h14 | 22mm |
| Weight | 0.25 kg |
