SKU: SIL17C-SKF

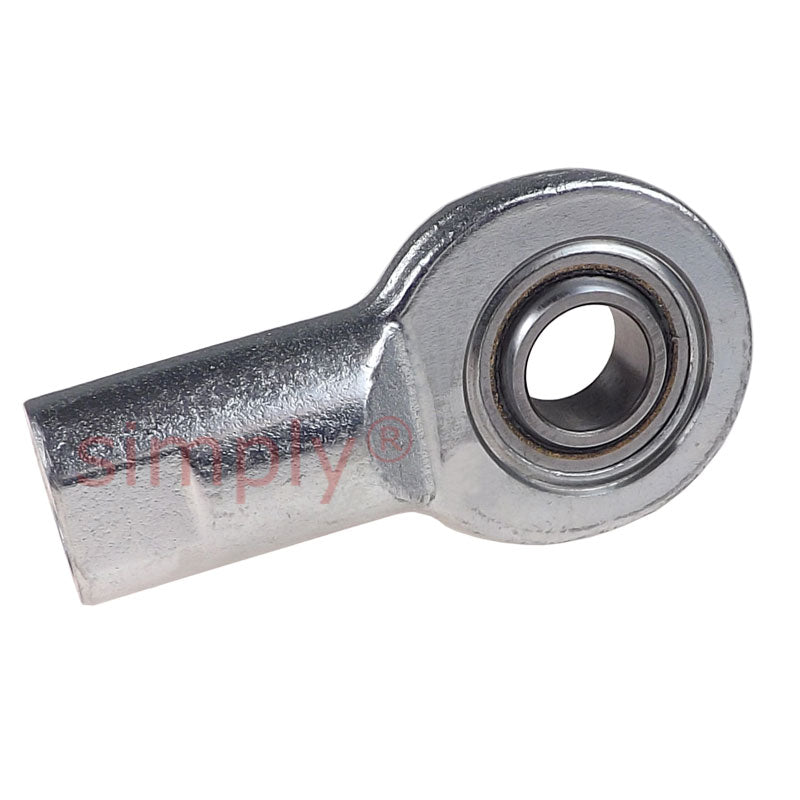

SKF SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread
SKF SIL17C Left Hand Steel / PTFE Sintered Bronze Lined Plain Female Rod End M16 Thread
Regular price
€65,74
ex VAT
Regular price
Sale price
€65,74
ex VAT
Equivalent to: GIL17UK
In stock
Price Break
10+
€58,51
19+
€55,22
29+
€54,56
39+
€53,91
49+
€53,25
74+
€52,59
99+
€49,31
199+
€48,65
249+
€47,99
499+
€47,33
999+
€46,02
Couldn't load pickup availability
Description
Description
| SKF Left Hand, Female Rod End : Maintenance-free female rod ends, with sliding contact surface combination, steel/sinter bronze composite. |
Equivalent: GIL17UK
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 17mm
- Material:
- PTFE Sintered Bronze Lined
Technical
Technical
| d | 17mm |
|---|---|
| d2 max | 47mm |
| G 6H | M16 |
| B | 14mm |
| C1 max | 11.5mm |
| h1 | 67mm |
| a | 10deg |
| Dynamic load C | 22.4 kN |
| Static load Co | 46.5 kN |
| Weight | 0.25 kg |
| dk | 25mm |
| d4 | 25mm |
| l3 min | 24mm |
| l4 max | 92mm |
| l5 | 15mm |
| l7 min | 22mm |
| r1 min | 0.3mm |
| w h14 | 22mm |
