SKU: SL1DEC-RHP

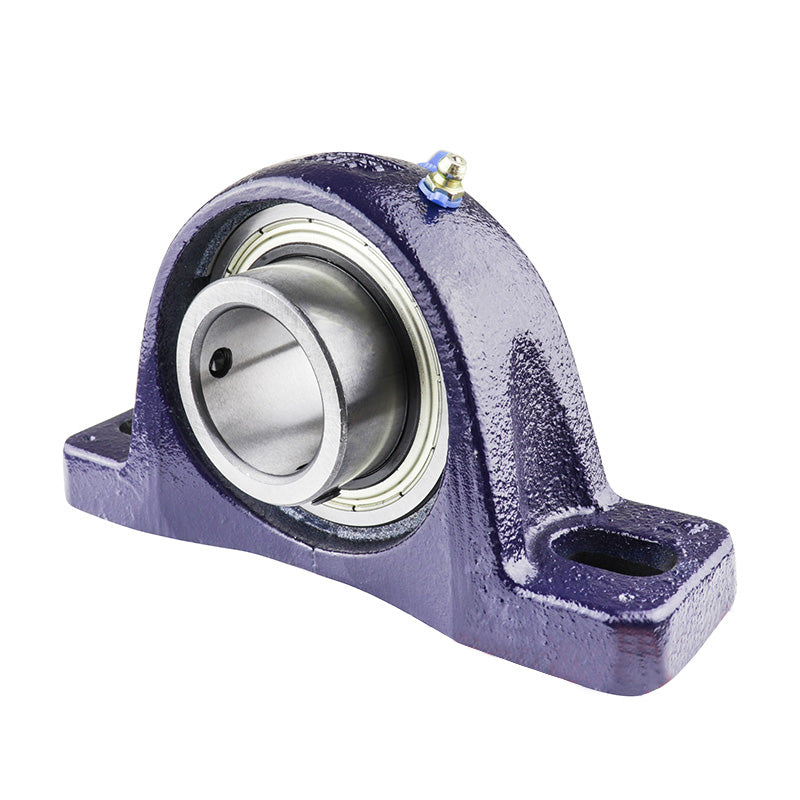

RHP SL1DEC Two Bolt Cast Iron Pillow Block and 1 Bore Eccentric Collar Full Width Insert
RHP SL1DEC Two Bolt Cast Iron Pillow Block and 1 Bore Eccentric Collar Full Width Insert
Regular price
€53,59
ex VAT
Regular price
Sale price
€53,59
ex VAT
In stock
Price Break
10+
€47,70
19+
€45,02
29+
€44,48
39+
€43,94
49+
€43,41
74+
€42,87
99+
€40,19
199+
€39,66
249+
€39,12
499+
€38,58
999+
€37,51
Couldn't load pickup availability
Description
Description
|
RHP SL-DEC Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and a grub screw to facilitate securing the bearing to the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25.4mm = 1 inch
- Style:
- SL
- Bolt Hole Centres:
- 3.866-4.339 inch
Technical
Technical
| Bore | 1 inch |
|---|---|
| L | 5.472 inch |
| H | 1.312 inch |
| H1 | 0.504 inch |
| H2 | 2.669 inch |
| J max | 4.339 inch |
| J min | 3.866 inch |
| G | 0.375 inch |
| A | 1.417 inch |
| A1 | 0.965 inch |
| B3 | 1.748 inch |
| s2 | 0.689 inch |
| d2 | 1.5 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1025-1DECG+insonly">1025-1DECG Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
