SKU: SL206_IMP_NAK

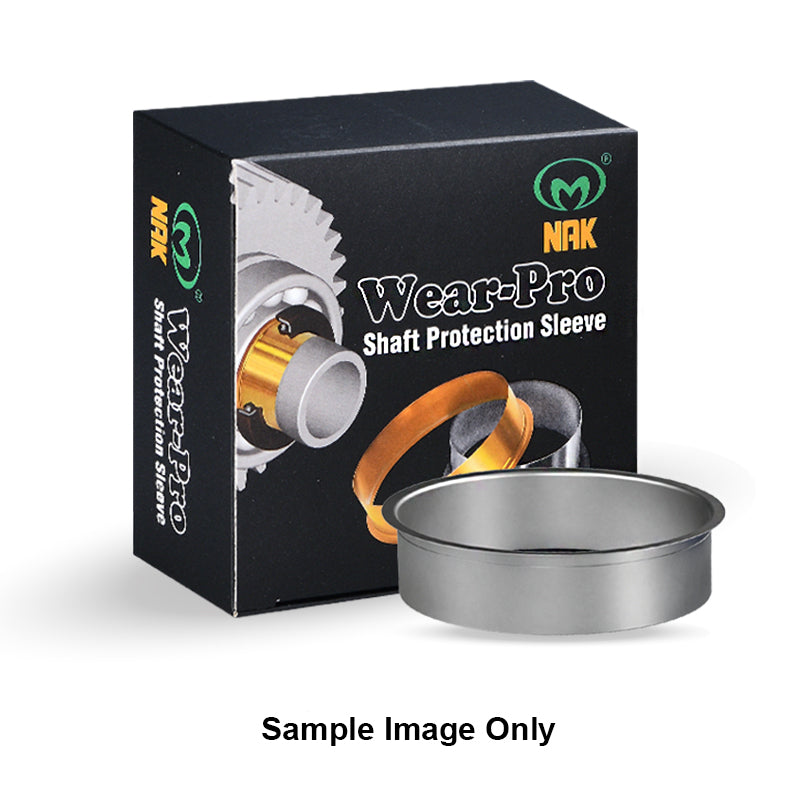

NAK SL206 Hardened Stainless Sleeve for Shafts 4.226-4.234 inch - Allow 7-10 Days
NAK SL206 Hardened Stainless Sleeve for Shafts 4.226-4.234 inch - Allow 7-10 Days
Regular price
€45,13
ex VAT
Regular price
Sale price
€45,13
ex VAT
Equivalent to: CR99423
In stock
Price Break
10+
€34,37
19+
€32,44
29+
€32,06
39+
€31,67
49+
€31,28
74+
€30,90
99+
€28,97
199+
€28,58
249+
€28,19
499+
€27,81
999+
€27,04
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99423
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.906 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 4.234 inch
- Flange Diameter:
- 4.61 inch
Technical
Technical
| Shaft Diameter Range (A) | 4.226-4.234 inch |
|---|---|
| Nominal Shaft Diameter (A) | 4.234 inch |
| Flange Diameter (D) | 4.61 inch |
| Width on Shaft (X) | 0.78 inch |
| Overall Width (Y) | 0.906 inch |
| Installation Depth (Z) | 1.437 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
