SKU: SL257_NAK

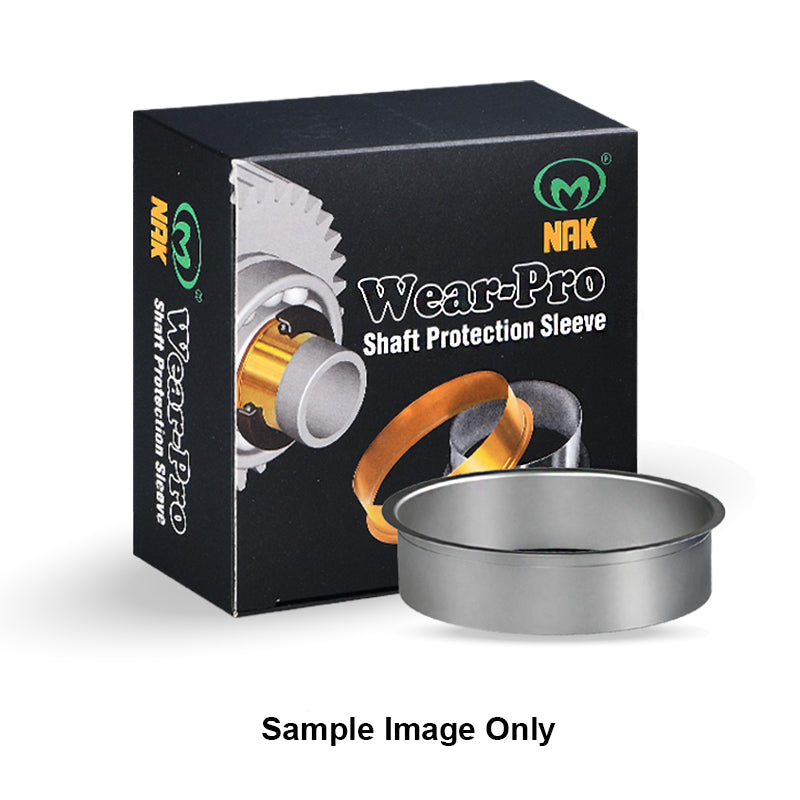

NAK SL257 Hardened Stainless Sleeve for Shafts 174.75-175.01mm - Allow 7-10 Days
NAK SL257 Hardened Stainless Sleeve for Shafts 174.75-175.01mm - Allow 7-10 Days
Regular price
€90,57
ex VAT
Regular price
Sale price
€90,57
ex VAT
Equivalent to: CR99687
In stock
Price Break
10+
€68,98
19+
€65,10
29+
€64,33
39+
€63,55
49+
€62,78
74+
€62,00
99+
€58,13
199+
€57,35
249+
€56,58
499+
€55,80
999+
€54,25
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
Equivalent: CR99687
- Brand / Quality:
- NAK - High Quality
- Width:
- 32mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 175.01mm
- Flange Diameter:
- 187mm
Technical
Technical
| Shaft Diameter Range (A) | 174.75-175.01mm |
|---|---|
| Nominal Shaft Diameter (A) | 175.01mm |
| Flange Diameter (D) | 187mm |
| Width on Shaft (X) | 28mm |
| Overall Width (Y) | 32mm |
| Installation Depth (Z) | 44.5mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
