SKU: SL7/8-RHP

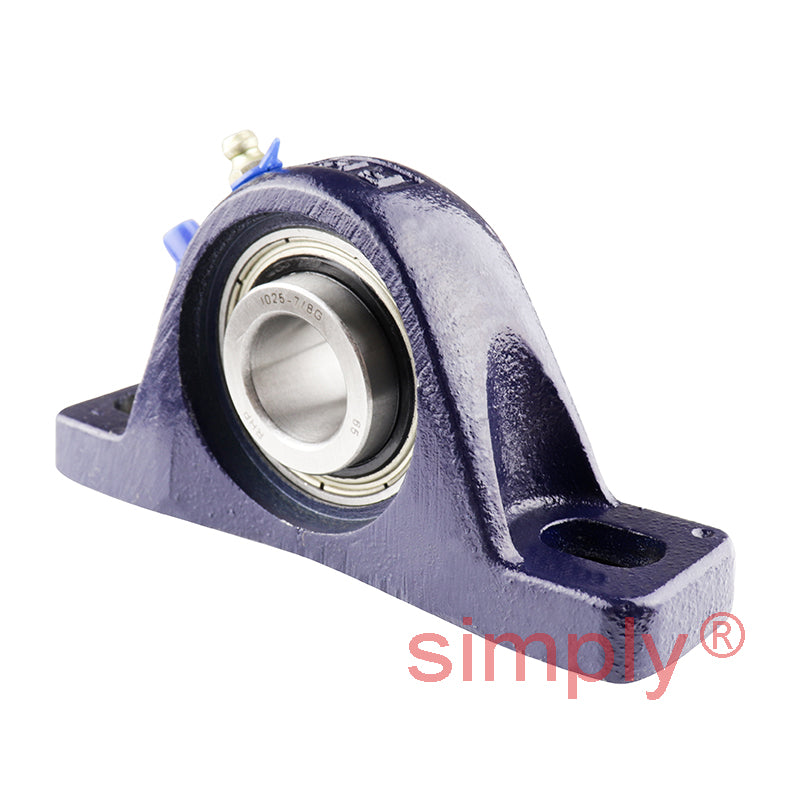

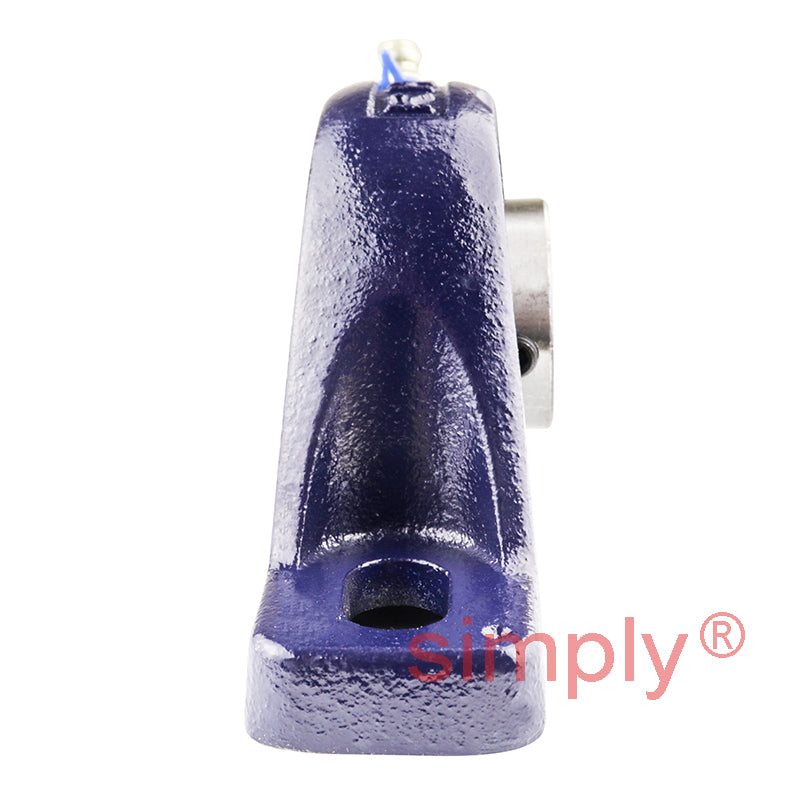

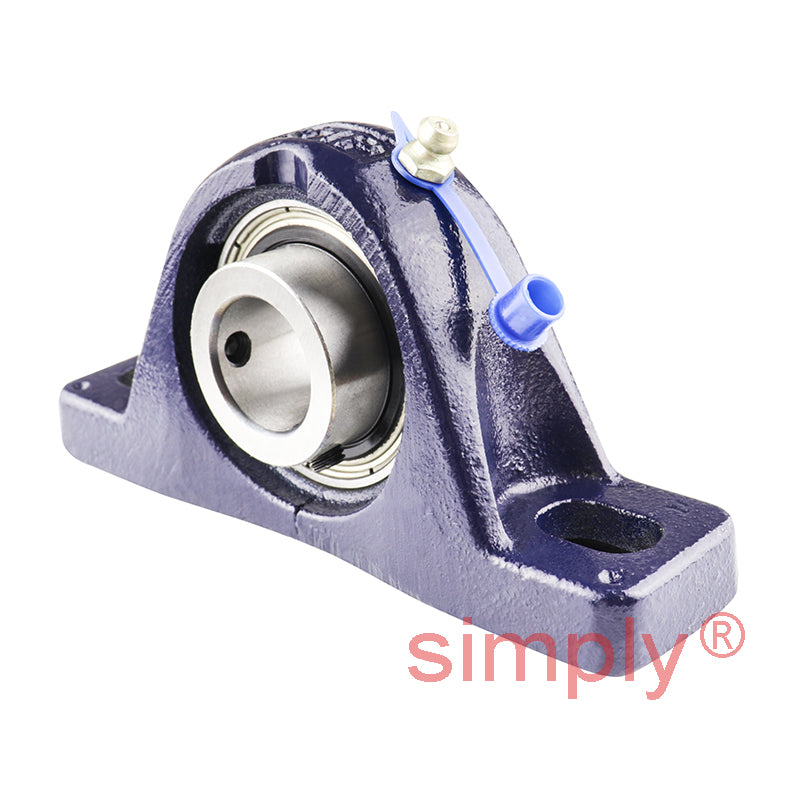

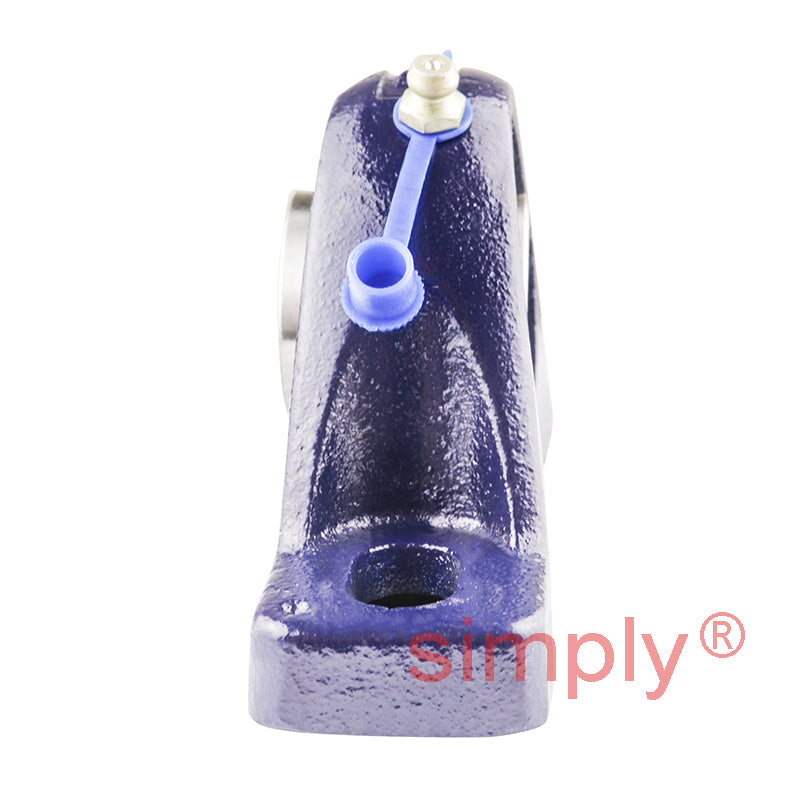

RHP SL7/8 Two Bolt Cast Iron Pillow Block and 7/8 Bore Grub Screw Full Width Insert
RHP SL7/8 Two Bolt Cast Iron Pillow Block and 7/8 Bore Grub Screw Full Width Insert
Regular price
€34,98
ex VAT
Regular price
Sale price
€34,98
ex VAT
In stock
Price Break
10+
€26,64
20+
€25,14
30+
€24,84
40+
€24,54
50+
€24,24
75+
€23,94
100+
€22,45
200+
€22,15
250+
€21,85
500+
€21,55
1000+
€20,95
Share this product
Description
Description
|
RHP SL Series Plummer / Pillow Housings: Supplied with a sealed full width bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 22.23mm = 0.875 (7/8) inch
- Style:
- SL
- Bolt Hole Centres:
- 3.866-4.339 inch
Technical
Technical
| Bore | 7/8 inch |
|---|---|
| L | 5.472 inch |
| H | 1.312 inch |
| H1 | 0.504 inch |
| H2 | 2.669 inch |
| J max | 4.339 inch |
| J min | 3.866 inch |
| G | 0.375 inch |
| A | 1.417 inch |
| A1 | 0.965 inch |
| B | 1.343 inch |
| s | 0.564 inch |
| s1 | 0.298 inch |
| d1 | 1.339 inch |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Insert | <a href="advanced_search_result.php?keywords=1025-7/8G+insonly">1025-7/8G Click Here</a> |
| Casting group | 3 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
