SKU: SLG104_NAK

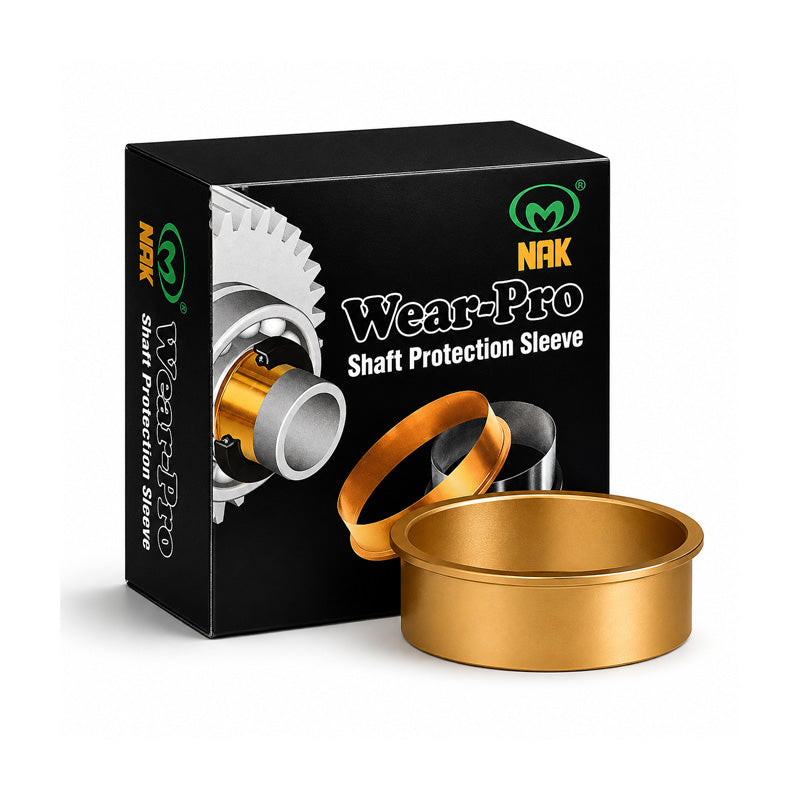

NAK SLG104 Hardened Stainless Sleeve for Shafts 57.910-58.060mm - Allow 7-10 Days
NAK SLG104 Hardened Stainless Sleeve for Shafts 57.910-58.060mm - Allow 7-10 Days
Regular price
€25,87
ex VAT
Regular price
Sale price
€25,87
ex VAT
In stock
Price Break
10+
€21,92
19+
€21,03
29+
€20,59
39+
€19,93
49+
€19,48
74+
€18,38
99+
€15,50
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Share this product
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 23.83mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 58mm
- Flange Diameter:
- 65.99mm
Technical
Technical
| Shaft Diameter Range (A) | 57.910-58.060mm |
|---|---|
| Nominal Shaft Diameter (A) | 58mm |
| Flange Diameter (D) | 65.99mm |
| Width on Shaft (X) | 19.84mm |
| Overall Width (Y) | 23.83mm |
| Installation Depth (Z) | 34.93mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
