SKU: SLG204_IMP_NAK

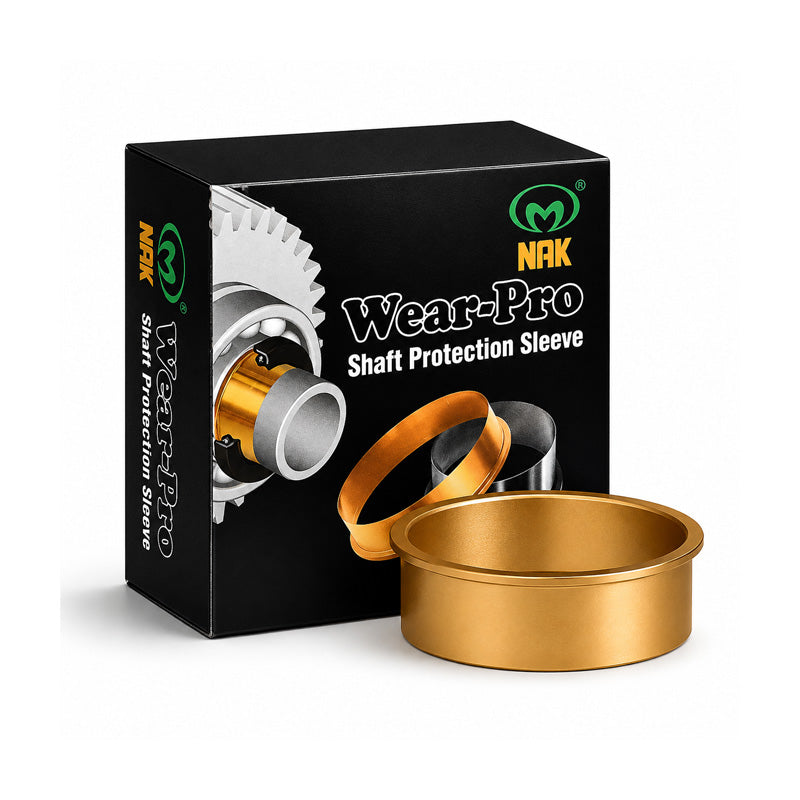

NAK SLG204 Hardened Stainless Sleeve for Shafts 4.130-4.138 inch - Allow 7-10 Days
NAK SLG204 Hardened Stainless Sleeve for Shafts 4.130-4.138 inch - Allow 7-10 Days
Regular price
€46,59
ex VAT
Regular price
Sale price
€46,59
ex VAT
In stock
Price Break
10+
€39,47
19+
€37,88
29+
€37,08
39+
€35,88
49+
€35,09
74+
€33,09
99+
€27,91
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.913 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 4.134 inch
- Flange Diameter:
- 4.469 inch
Technical
Technical
| Shaft Diameter Range (A) | 4.130-4.138 inch |
|---|---|
| Nominal Shaft Diameter (A) | 4.134 inch |
| Flange Diameter (D) | 4.469 inch |
| Width on Shaft (X) | 0.787 inch |
| Overall Width (Y) | 0.913 inch |
| Installation Depth (Z) | 1.378 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
