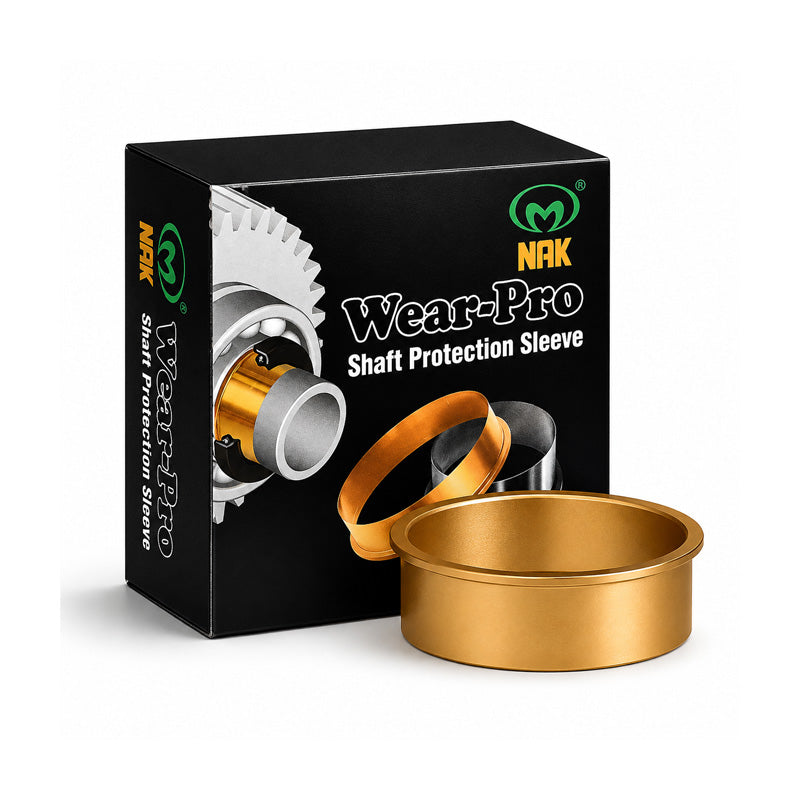

NAK SLG208 Hardened Stainless Sleeve for Shafts 109.910-110.110mm - Allow 7-10 Days
NAK SLG208 Hardened Stainless Sleeve for Shafts 109.910-110.110mm - Allow 7-10 Days
Regular price
€51,76
ex VAT
Regular price
Sale price
€51,76
ex VAT
In stock
Price Break
10+
€43,85
19+
€42,08
29+
€41,19
39+
€39,86
49+
€38,98
74+
€36,76
99+
€31,00
199+
€0,00
249+
€0,00
499+
€0,00
999+
€0,00
Description
Description
NAK Wear-Pro Gold Shaft Protection Sleeves: Wear-Pro Sleeve Gold is an advanced design that is used in harsh operating applications. This product offers improved resistance to abrasive wear. The Wear-Pro sleeve gold is particularly effective in high-dust and grit environments, especially when combined with a seal manufactured in Fluorocarbon rubber material.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 16.5mm
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 109.93mm
- Flange Diameter:
- 125mm
Technical
Technical
| Shaft Diameter Range (A) | 109.910-110.110mm |
|---|---|
| Nominal Shaft Diameter (A) | 109.93mm |
| Flange Diameter (D) | 125mm |
| Width on Shaft (X) | 12.9mm |
| Overall Width (Y) | 16.5mm |
| Installation Depth (Z) | 32mm |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
