SKU: SNP50EC-RHP

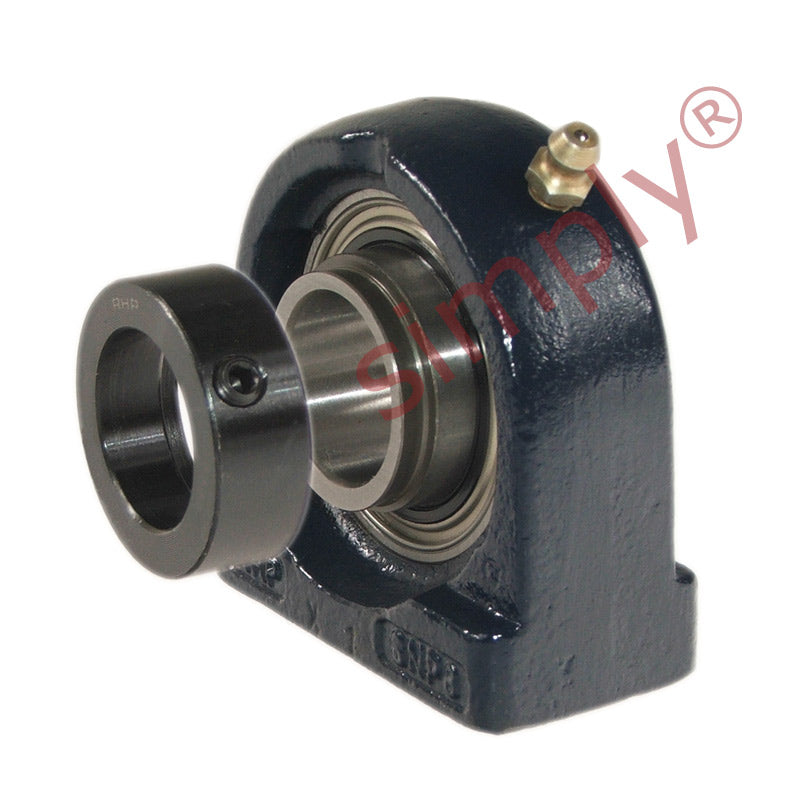

RHP SNP50EC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Flat Back Collar Insert
RHP SNP50EC Threaded Base Small Footprint Pillow / Plummer Block and 50mm Bore Flat Back Collar Insert
Regular price
€115,09
ex VAT
Regular price
Sale price
€115,09
ex VAT
In stock
Price Break
10+
€102,43
19+
€96,68
29+
€95,52
39+
€94,37
49+
€93,22
74+
€92,07
99+
€86,32
199+
€85,17
249+
€84,02
499+
€82,86
999+
€80,56
Couldn't load pickup availability
Description
Description
|
RHP SNP EC Series Small Footprint Housing Units: Threaded base bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 50mm
- Style:
- SNP
- Bolt Hole Centres:
- 101.6mm
Technical
Technical
| Bore | 50mm |
|---|---|
| L | 135mm |
| H | 57.2mm |
| H1 | 23.5mm |
| H2 | 115mm |
| J | 101.6mm |
| Threads | M16x2.0 |
| A | 54mm |
| A1 | 34mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 69.85mm |
| Dynamic load Cr | 35000 N |
| Static load Cor | 23200 N |
| Rec max speed | 3400 rpm |
| Weight | 3.3 kg |
| Insert | <a href="advanced_search_result.php?keywords=1250-50ECG+insonly">1250-50ECG Click Here</a> |
| Casting group | 8 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
