SKU: SONL217-517-SKF

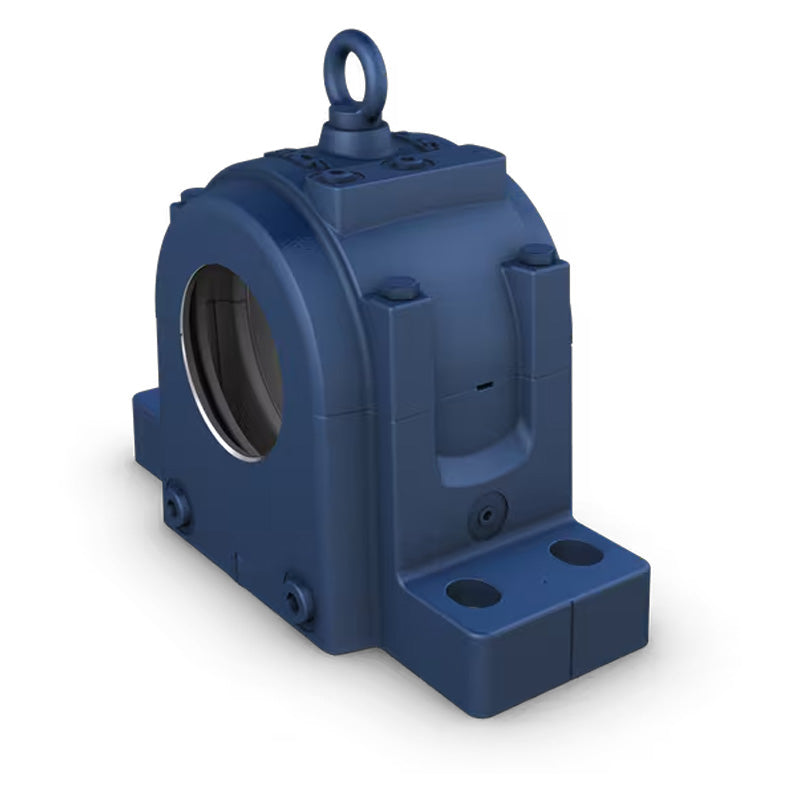

SKF SONL217-517 Cast Iron Split Pillow Block Housing
SKF SONL217-517 Cast Iron Split Pillow Block Housing
Regular price
€2.251,57
ex VAT
Regular price
Sale price
€2.251,57
ex VAT
In stock
Price Break
4+
€1.714,80
9+
€1.618,46
19+
€1.599,20
29+
€1.579,93
39+
€1.560,66
49+
€1.541,39
59+
€1.445,06
69+
€1.425,79
79+
€1.406,52
89+
€1.387,25
99+
€1.348,72
Description
Description
|
SKF SONL Split Plummer Block Housings: SONL plummer block housings are split housings consisting of a cap and base. They are made of grey cast iron and are painted block using a water based alkyd/acryl paint which protects the housing in accordance with ISO 12944-2, corrosivity category C2 (i.e. exterior atmospheres with low level of pollution, interior atmospheres where condensation may occur). The housings have a deep reservoir that holds a large volume of oil so that heat can be dissipated effectively. The housings have four holes cast into the base for attachment bolts. Benefits: Strong, stiff and simple design, simple mounting, deep sump for lower operating temperatures. |
- Brand / Quality:
- SKF - High Quality
- Bolt Hole Centres:
- 260mm
Technical
Technical
| da | 74.612mm |
|---|---|
| Ca | 46mm |
| Da | 150mm |
| A | 163mm |
| A1 | 110mm |
| A2 | 138mm |
| AA | 172mm |
| AB | 180mm |
| d1 | 96mm |
| B1 | 72mm |
| H | 230mm |
| H0 | 283mm |
| H1 | 125mm |
| H2 | 35mm |
| J | 260mm |
| J1 | 60mm |
| L | 330mm |
| N | 28mm |
| N1 | 22mm |
| S | 90mm |
| PG | G 3/8 |
| P1 | 47.5mm |
| P2 | 40mm |
| RG | G 3/4 |
| R1 | 118mm |
| R2 | 22mm |
| O1 | 97mm |
| O2 | 138mm |
| J6 | 290mm |
| N4 max | 6mm |
| ba | 40mm |
| bb | 130mm |
| s2 | 19mm |
| Weight | 26 kg |
