SKU: SRBB20/2_15/30-TRAN

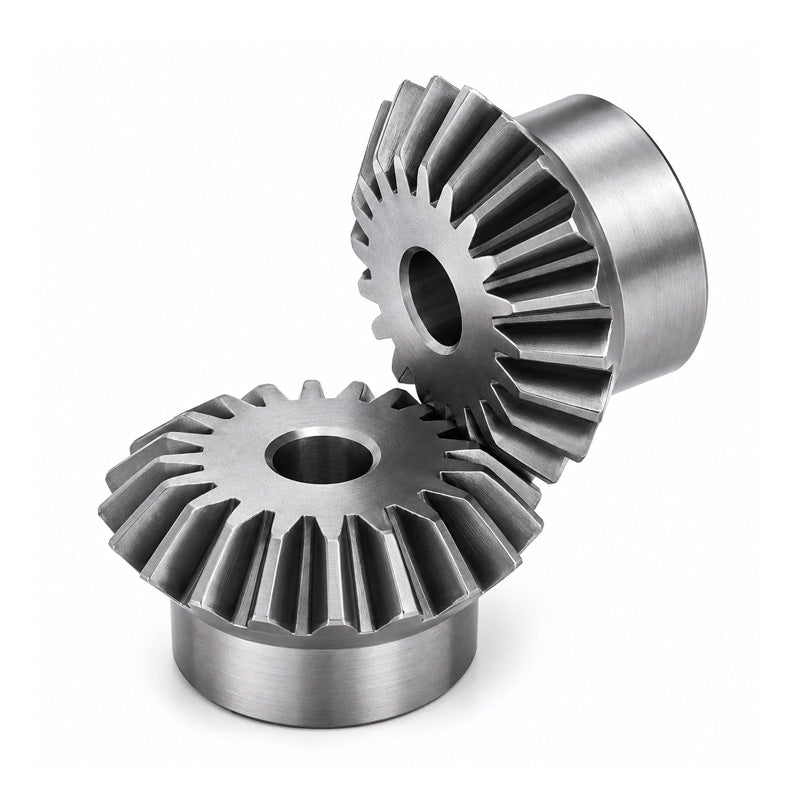

SRBB20/2 15/30 Tooth Metric En8 Steel Pair of Black Oxide Finish Bevel Gears 2:1 Ratio 2.0 MOD 20deg Pressure Angle
SRBB20/2 15/30 Tooth Metric En8 Steel Pair of Black Oxide Finish Bevel Gears 2:1 Ratio 2.0 MOD 20deg Pressure Angle
Regular price
€87,28
ex VAT
Regular price
Sale price
€87,28
ex VAT
Equivalent to: SRBB20/2
In stock
Price Break
10+
€77,68
19+
€73,32
29+
€72,44
39+
€71,57
49+
€70,70
74+
€69,82
99+
€65,46
199+
€64,59
249+
€63,71
499+
€62,84
999+
€61,10
Couldn't load pickup availability
Description
Description
Equivalent: SRBB20/2
- Brand / Quality:
- Drive-Flex - High Quality
- Bore:
- G1: 8mm / G2: 10mm
- Number of Teeth:
- 15/30
- Pitch Circle Diameter:
- G1: 34.81mm / G2: 61.17mm
Technical
Technical
| Gear 1 - Pitch Module | 2.0 |
|---|---|
| Gear 1 - No. Teeth | 15 |
| Gear 1 - dp | 30mm |
| Gear 1 - A+V | 40mm |
| Gear 1 - dm | 22mm |
| Gear 1 - Bore | 8mm |
| Gear 1 - F | 11mm |
| Gear 1 - A | 20.59mm |
| Gear 1 - de | 34.81mm |
| Gear 1 - S | 2.59mm |
| Gear 1 - Lm | 8mm |
| Gear 2 - Pitch Module | 2.0 |
| Gear 2 - No. Teeth | 30 |
| Gear 2 - dp | 60mm |
| Gear 2 - A+V | 31mm |
| Gear 2 - dm | 30mm |
| Gear 2 - Bore | 10mm |
| Gear 2 - F | 11mm |
| Gear 2 - A | 21.6mm |
| Gear 2 - de | 61.17mm |
| Gear 2 - S | 3.6mm |
| Gear 2 - Lm | 10mm |
