SKU: SS.PHS10L.EU

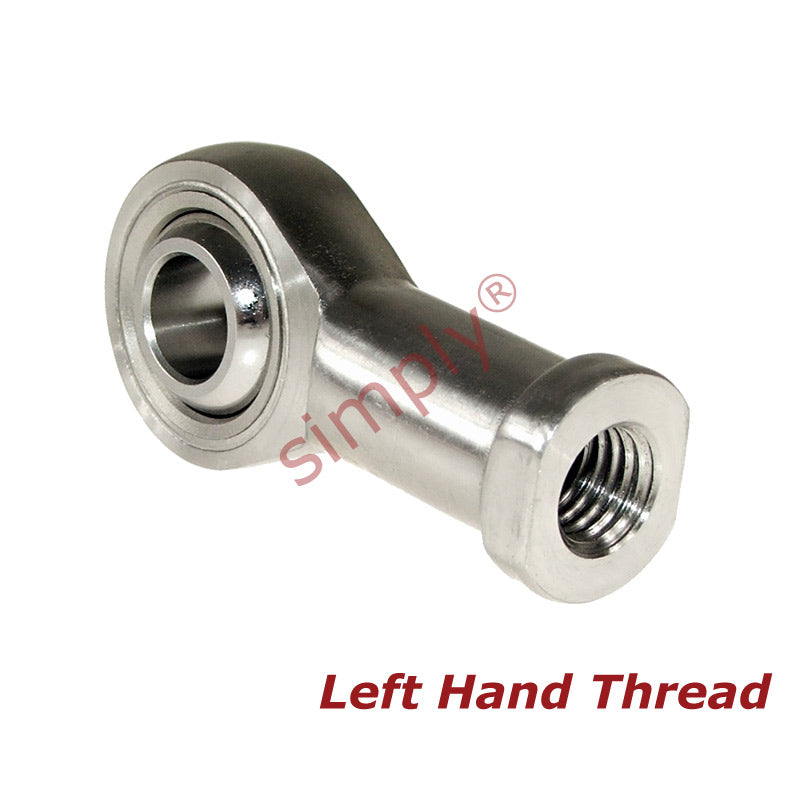

Budget SSPHS10L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
Budget SSPHS10L Left Hand Stainless Steel / PTFE Lined Plain Female Rod End 10mm Bore M10x1.5 Thread
Regular price
€17,84
ex VAT
Regular price
Sale price
€17,84
ex VAT
In stock
Price Break
10+
€13,59
19+
€12,83
29+
€12,67
39+
€12,52
49+
€12,37
74+
€12,22
99+
€11,45
199+
€11,30
249+
€11,15
499+
€10,99
999+
€10,69
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: LEFT hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M10x1.5
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 10mm
- Material:
- PTFE Lined
Technical
Technical
| d | 10mm |
|---|---|
| B | 14mm |
| r1 | 0.6mm |
| C1 | 10.5mm |
| d1 max | 12.9mm |
| d2 | 26mm |
| d3 | M10x1.5 |
| h1 | 43mm |
| L3 | 21mm |
| L4 | 56mm |
| L5 | 6.5mm |
| d4 | 15mm |
| d5 | 19mm |
| S | 17mm |
| Ball diameter | 3/4 inch |
| Dynamic load Cr | 10mm |
| Static load Cor | 13.6mm |
| Max angle α | 13 |
| Weight | 0.072 kg |
