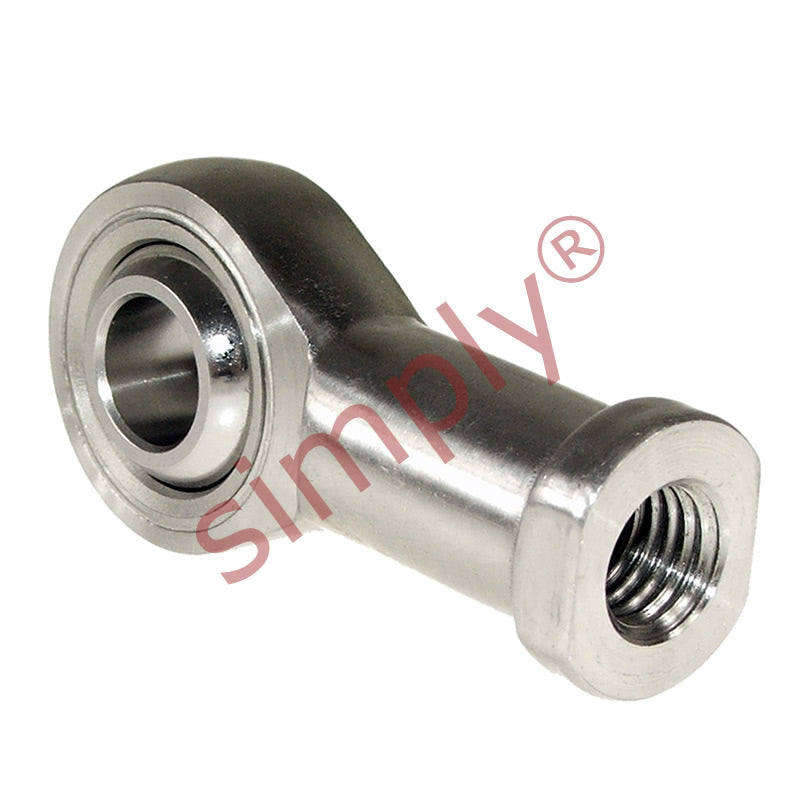

Budget SSPHS16/F1 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x1.5 Thread
Budget SSPHS16/F1 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 16mm Bore M16x1.5 Thread
Regular price
€45,70
ex VAT
Regular price
Sale price
€45,70
ex VAT
In stock
Price Break
10+
€34,81
19+
€32,85
29+
€32,46
39+
€32,07
49+
€31,68
74+
€31,29
99+
€29,33
199+
€28,94
249+
€28,55
499+
€28,16
999+
€27,38
Share this product
Description
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Inside Diameter:
- 16mm
- Material:
- PTFE Lined
Technical
Technical
| d | 16mm |
|---|---|
| B | 21mm |
| r1 | 0.6mm |
| C1 | 15mm |
| d1 max | 19.3mm |
| d2 | 38mm |
| d3 | M16x1.5 |
| h1 | 64mm |
| L3 | 33mm |
| L4 | 83mm |
| L5 | 8mm |
| d4 | 22mm |
| d5 | 27mm |
| S | 22mm |
| Ball diameter | 1-1/8 inch |
| Dynamic load Cr | 21.4mm |
| Static load Cor | 25.9mm |
| Max angle α | 15 |
| Weight | 0.21 kg |
