SKU: SSUC.202-10

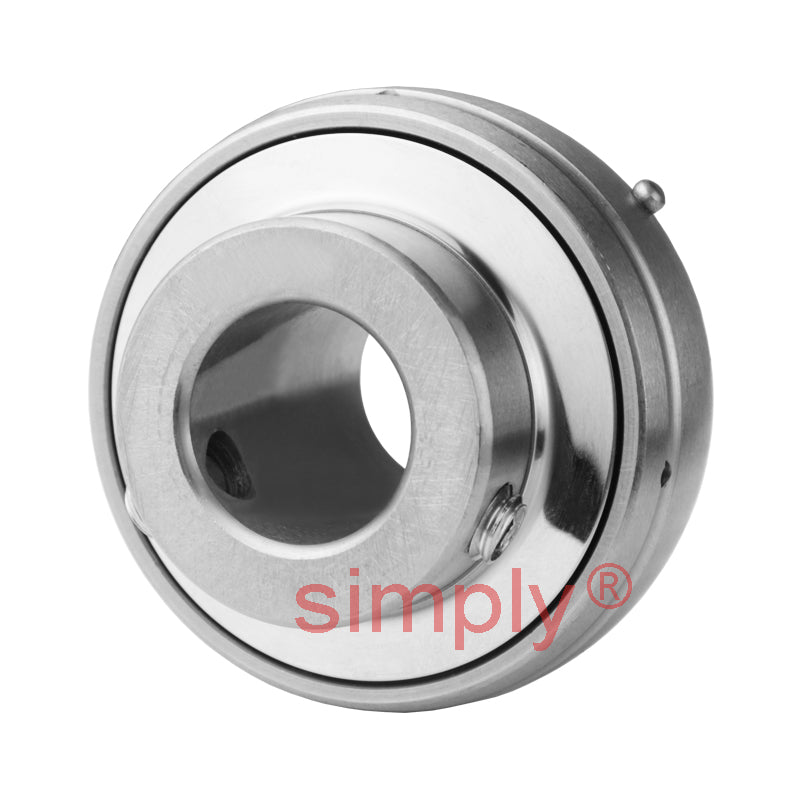

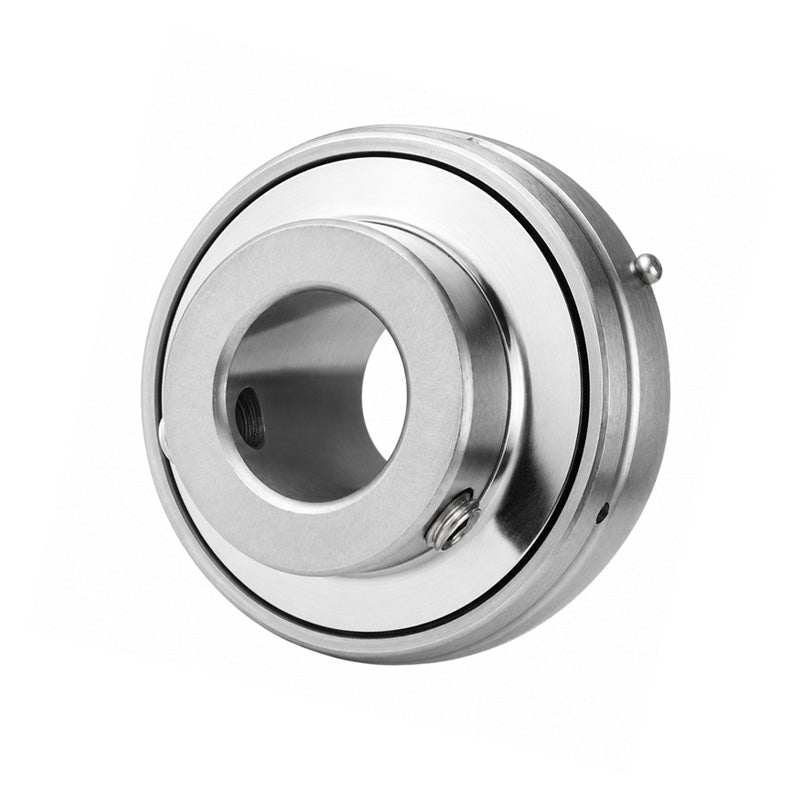

SSUC202-10 Imperial Stainless Steel Bearing Insert with 5/8 inch Bore 47mm Outside Dia
SSUC202-10 Imperial Stainless Steel Bearing Insert with 5/8 inch Bore 47mm Outside Dia
Regular price
€11,25
ex VAT
Regular price
Sale price
€11,25
ex VAT
In stock
Price Break
3+
€8,57
4+
€8,09
9+
€7,99
19+
€7,90
49+
€7,80
99+
€7,70
499+
€7,22
999+
€7,13
1999+
€7,03
2999+
€6,93
4999+
€6,74
Description
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 47mm
- Style:
- SSUC
Technical
Technical
| d | 5/8 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
