SKU: SSUCP.205-15

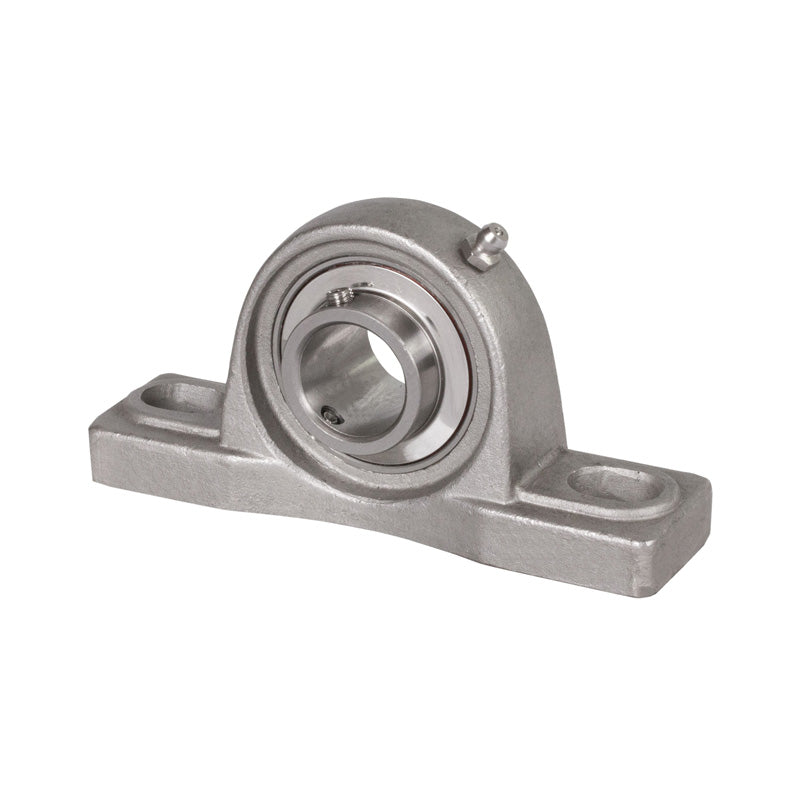

SSUCP205-15 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Stainless Insert
SSUCP205-15 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 15/16 inch Bore Stainless Insert
Regular price
€63,08
ex VAT
Regular price
Sale price
€63,08
ex VAT
Equivalent to: NP15/16
In stock
Price Break
3+
€48,04
4+
€45,34
9+
€44,80
19+
€44,26
49+
€43,72
99+
€43,18
499+
€40,48
999+
€39,94
1999+
€39,40
2999+
€38,86
4999+
€37,78
Description
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Equivalent: NP15/16
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- SSUCP
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| h | 36.5mm |
| a | 140mm |
| e | 105mm |
| b | 38mm |
| s2 | 19mm |
| s1 | 13mm |
| g | 16mm |
| w | 70mm |
| B1 | 34mm |
| n | 14.3mm |
| Bolt | 10mm |
| Weight | 0.79 kg |
| Dynamic load | 1100 kgf |
| Static load | 710 kgf |
| Rec max speed | 6250 rpm |
