SKU: ST3-RHP

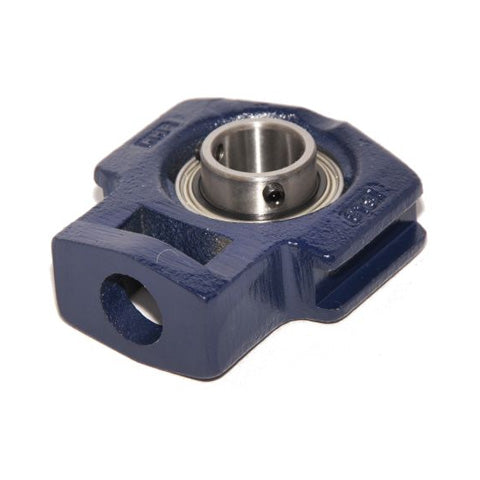

RHP ST3 Cast Iron Take Up Unit and 3 inch Bore Insert

RHP ST3 Cast Iron Take Up Unit and 3 inch Bore Insert
Regular price €348,97 ex VAT
Regular price Sale price €348,97 ex VAT
Sale Sold out

In stock

Price Break
10+ €265,78
20+ €250,84
30+ €247,86
40+ €244,87
50+ €241,89
75+ €238,90
100+ €223,97
200+ €220,98
250+ €218,00
500+ €215,01
1000+ €209,04
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3 inch
L 9.114 inch
L1 5.492 inch
L2 0.807 inch
L3 1.26 inch
L4 4.921 inch
L5 2.913 inch
H 7.244 inch
H1 4.449 inch
H2 2.756 inch
H3 6.5 inch
N 1.654 inch
A 2.756 inch
A1 2.126 inch
A2 1.063 inch
B 3.25 inch
s 1.314 inch
d1 3.878 inch
Dynamic load 71500 N
Static load 54500 N
Rec max speed 2150 rpm
Weight 9 kg
Insert <a href="advanced_search_result.php?keywords=1080-3G+insonly">1080-3G Click Here</a>
Casting group 13
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
