SKU: ST35EC-RHP

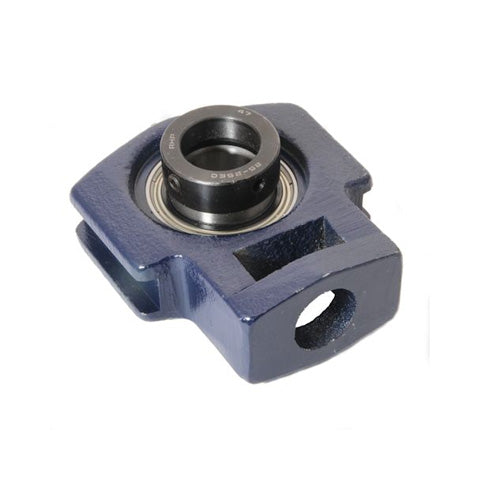

RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert

RHP ST35EC Cast Iron Take Up Unit and 35mm Bore Insert
Regular price €75,06 ex VAT
Regular price Sale price €75,06 ex VAT
Sale Sold out

In stock

Price Break
10+ €57,16
20+ €53,95
30+ €53,31
40+ €52,67
50+ €52,03
75+ €51,38
100+ €48,17
200+ €47,53
250+ €46,89
500+ €46,25
1000+ €44,96
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 35mm
L 124mm
L1 75.5mm
L2 12.5mm
L3 16.5mm
L4 64.5mm
L5 43mm
H 101.5mm
H1 64.5mm
H2 37.5mm
H3 89mm
N 22.5mm
A 36.5mm
A1 30mm
A2 13.5mm
B2 38.88mm
s1 9.55mm
d2 55.58mm
Dynamic load 25700 N
Static load 15300 N
Rec max speed 4500 rpm
Weight 1.6 kg
Insert <a href="advanced_search_result.php?keywords=1235-35ECG+insonly">1235-35ECG Click Here</a>
Casting group 5
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
