SKU: ST55-RHP

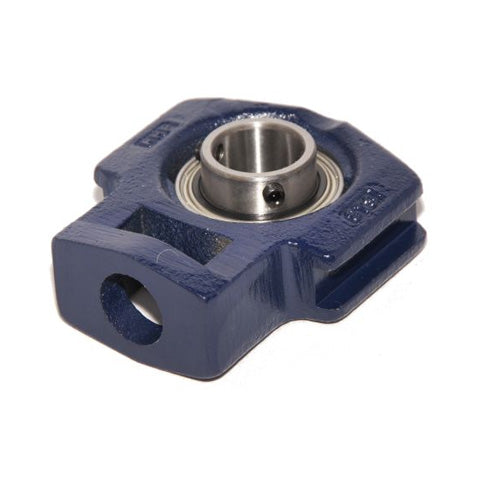

RHP ST55 Cast Iron Take Up Unit and 55mm Bore Insert
RHP ST55 Cast Iron Take Up Unit and 55mm Bore Insert
Regular price
€141,20
ex VAT
Regular price
Sale price
€141,20
ex VAT
In stock
Price Break
10+
€107,54
20+
€101,50
30+
€100,29
40+
€99,08
50+
€97,87
75+
€96,66
100+
€90,62
200+
€89,41
250+
€88,21
500+
€87,00
1000+
€84,58
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 55mm
- Style:
- ST
Technical
Technical
| Bore | 55mm |
|---|---|
| L | 182mm |
| L1 | 114mm |
| L2 | 19mm |
| L3 | 32mm |
| L4 | 97.5mm |
| L5 | 70mm |
| H | 146mm |
| H1 | 101mm |
| H2 | 64mm |
| H3 | 130mm |
| N | 35mm |
| A | 63.5mm |
| A1 | 46.5mm |
| A2 | 27mm |
| B | 55.55mm |
| s | 22.28mm |
| d1 | 68.81mm |
| Dynamic load | 43500 N |
| Static load | 29200 N |
| Rec max speed | 3100 rpm |
| Weight | 4.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1055-55G+insonly">1055-55G Click Here</a> |
| Casting group | 9 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
