SKU: ST85-RHP

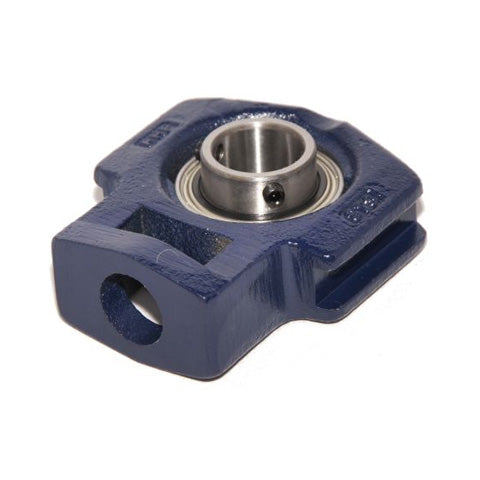

RHP ST85 Cast Iron Take Up Unit and 85mm Bore Insert
RHP ST85 Cast Iron Take Up Unit and 85mm Bore Insert
Regular price
€737,10
ex VAT
Regular price
Sale price
€737,10
ex VAT
In stock
Price Break
10+
€561,38
20+
€529,84
30+
€523,53
40+
€517,23
50+
€510,92
75+
€504,61
100+
€473,07
200+
€466,76
250+
€460,46
500+
€454,15
1000+
€441,53
Share this product
Description
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 85mm
- Style:
- ST
Technical
Technical
| Bore | 85mm |
|---|---|
| L | 260.5mm |
| L1 | 162mm |
| L2 | 28.5mm |
| L3 | 38mm |
| L4 | 140mm |
| L5 | 90.5mm |
| H | 198.5mm |
| H1 | 124mm |
| H2 | 73mm |
| H3 | 173mm |
| N | 47.5mm |
| A | 79.5mm |
| A1 | 68.5mm |
| A2 | 46.05mm |
| B | 85.72mm |
| s | 34.18mm |
| d1 | 106.02mm |
| Dynamic load | 83000 N |
| Static load | 64000 N |
| Rec max speed | 2000 rpm |
| Weight | 13.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1085-85G+insonly">1085-85G Click Here</a> |
| Casting group | 14 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
