SKU: SUCP.PL.209

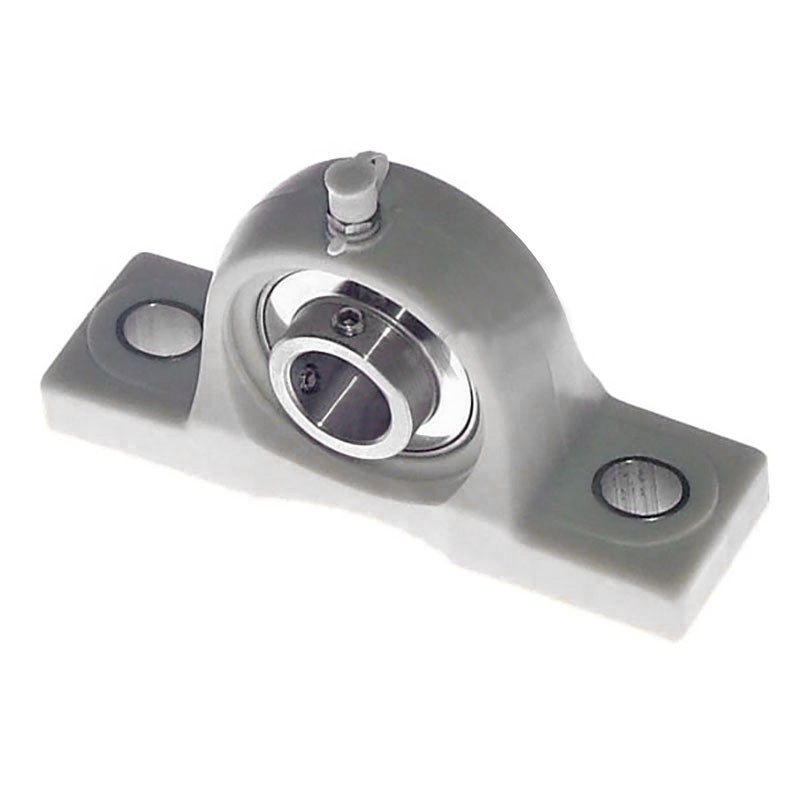

SUCPPL209 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 45mm Bore Stainless Insert
SUCPPL209 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 45mm Bore Stainless Insert
Regular price
€109,26
ex VAT
Regular price
Sale price
€109,26
ex VAT
Equivalent to: PNP45CR
In stock
Price Break
3+
€83,22
4+
€78,54
9+
€77,61
19+
€76,67
49+
€75,74
99+
€74,80
499+
€70,13
999+
€69,19
1999+
€68,26
2999+
€67,32
4999+
€65,45
Description
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Equivalent: PNP45CR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Temperature Range:
- -35 to 102 deg C
- Style:
- SUCP
- Bolt Hole Centres:
- 146mm
Technical
Technical
| d | 45mm |
|---|---|
| h | 54mm |
| a | 190mm |
| e | 146mm |
| b | 54mm |
| s2 | 21mm |
| s1 | 17mm |
| g | 20mm |
| w | 106mm |
| B1 | 49.2mm |
| n | 19mm |
| Bolt | 14mm |
| Weight | 2.2 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Temperature Range | -35 to 102 deg C |
| Rec max speed | 3700 rpm |
