SKU: SW24-M2400

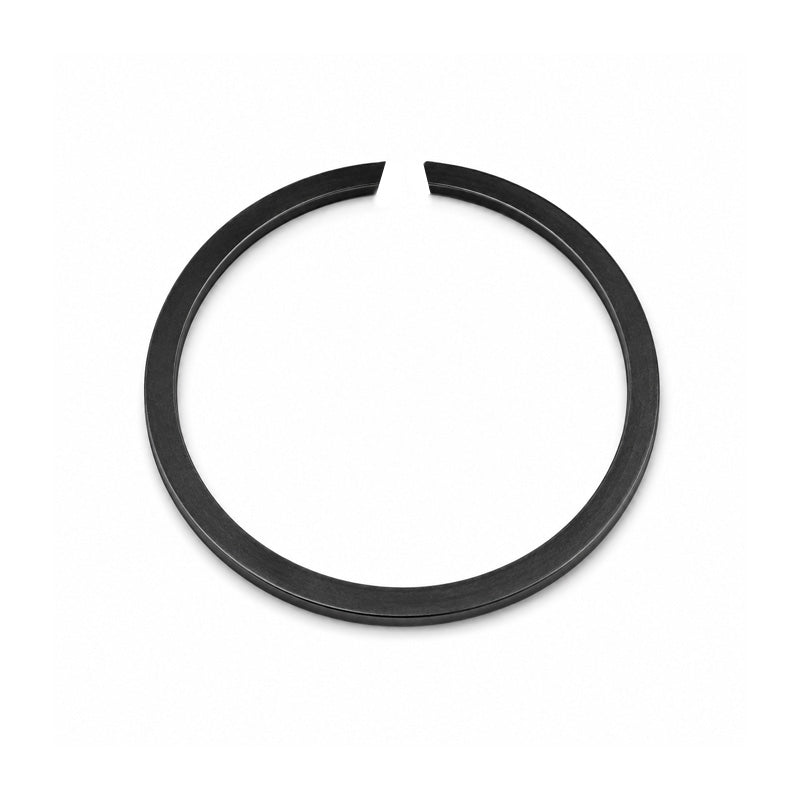

SW24 Snap Ring to Suit 24mm Shaft

Name: SW24 Snap Ring to Suit 24mm Shaft
Brand: Major Brand
SKU: SW24-M2400
Price: 0.99 EUR
Availability: InStock

€0,99 ex VAT

Sale Sold out

Equivalent to: DIN5417 DIN 5417 CFS24 CFS-24 2400-24 SW24 SW-24 M2400-24

In stock

Price Break

10+ €0,43

20+ €0,29

50+ €0,18

100+ €0,15

500+ €0,09

1000+ €0,08

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52

Equivalent: DIN5417 DIN 5417 CFS24 CFS-24 2400-24 SW24 SW-24 M2400-24

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 22.5mm
Shaft Size:: 24mm

Technical

d1	24mm
s	1.2mm (Tolerance -0.1)
b	1.75mm (Tolerance -0.1)
d3 max.	22.5mm
d2	23mm (Tolerance - 0.13)
m min.	1.3mm
FN	6.15 kN
FR	13.3 kN
n det x1000	18 rpm
