SKU: SY1.1/4TF/VA201-SKF

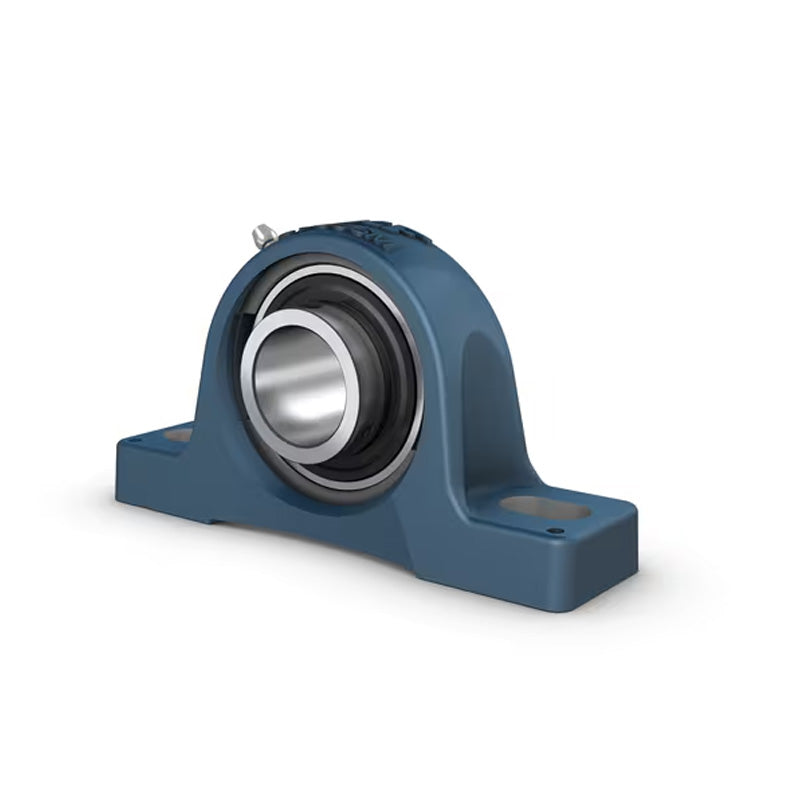

SKF SY11/4TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
SKF SY11/4TF/VA201 Y Type Two Bolt Pillow Block Housing with Steel Cage Insert for Imperial Shaft 1-1/4 inch
Regular price
€249,06
ex VAT
Regular price
Sale price
€249,06
ex VAT
In stock
Price Break
10+
€189,69
19+
€179,03
29+
€176,90
39+
€174,77
49+
€172,64
74+
€170,51
99+
€159,85
199+
€157,72
249+
€155,59
499+
€153,46
999+
€149,19
Share this product
Description
Description
|
SKF High Temperature Housings and Bearing Inserts: VA201 have a grey cast iron housing and have steel cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -40 deg to +250 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts.They have a max rotational speed of 100 rpm Benefits:High temp tolerance from -40 to +250 deg Celsius |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Temperature Range:
- High Temp
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| A | 45mm |
| B | 42.9mm |
| H | 93mm |
| H1 | 47.6mm |
| H2 | 19mm |
| J | 126mm |
| L | 160mm |
| N | 21mm |
| N1 | 14mm |
| G | 12mm |
| S1 | 25.4mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 15.3 kN |
| Weight | 1.57 kg |
